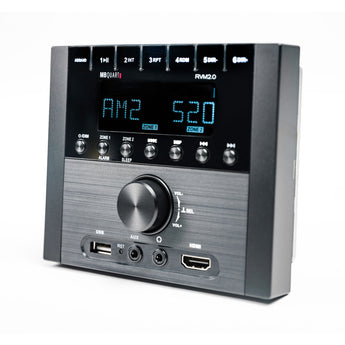

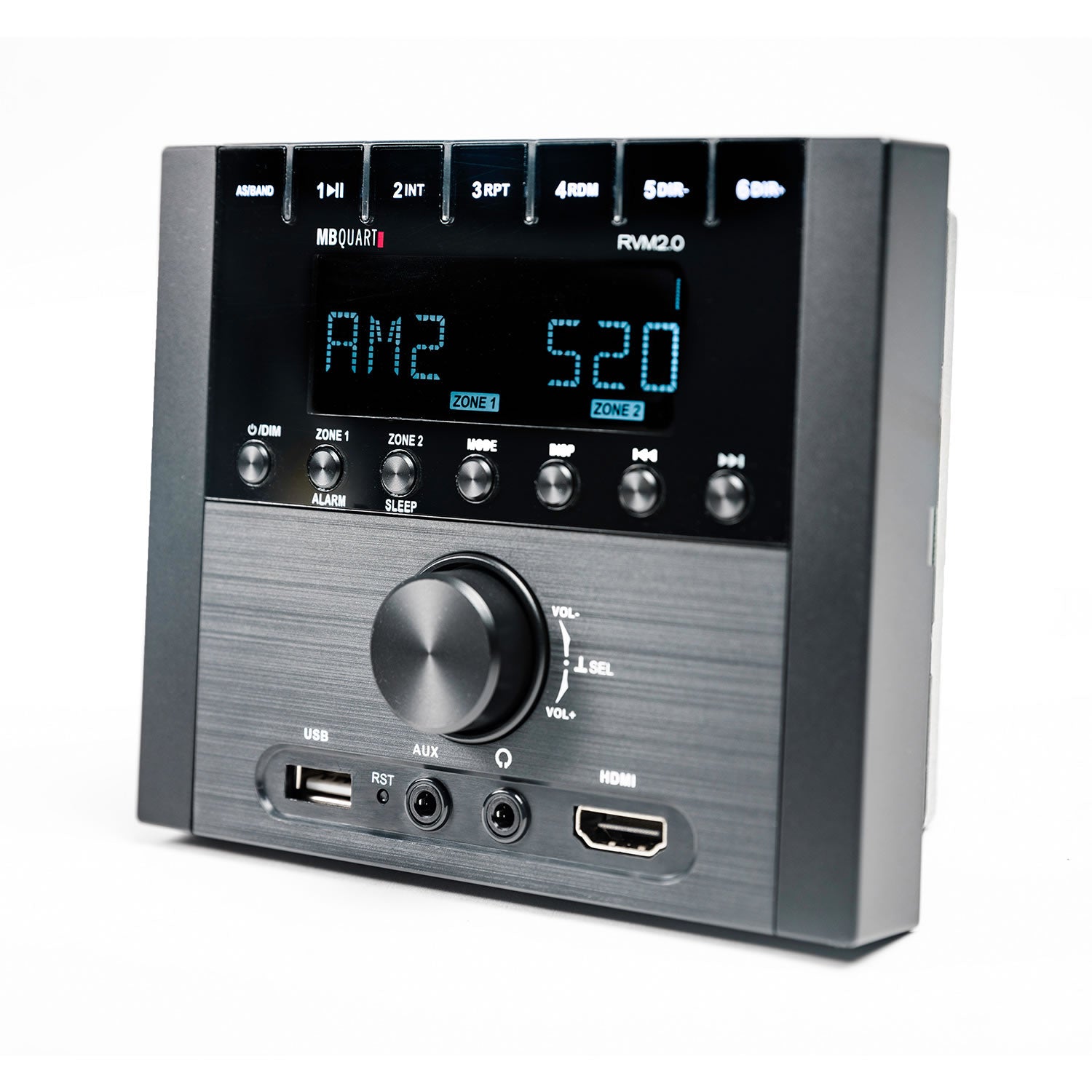

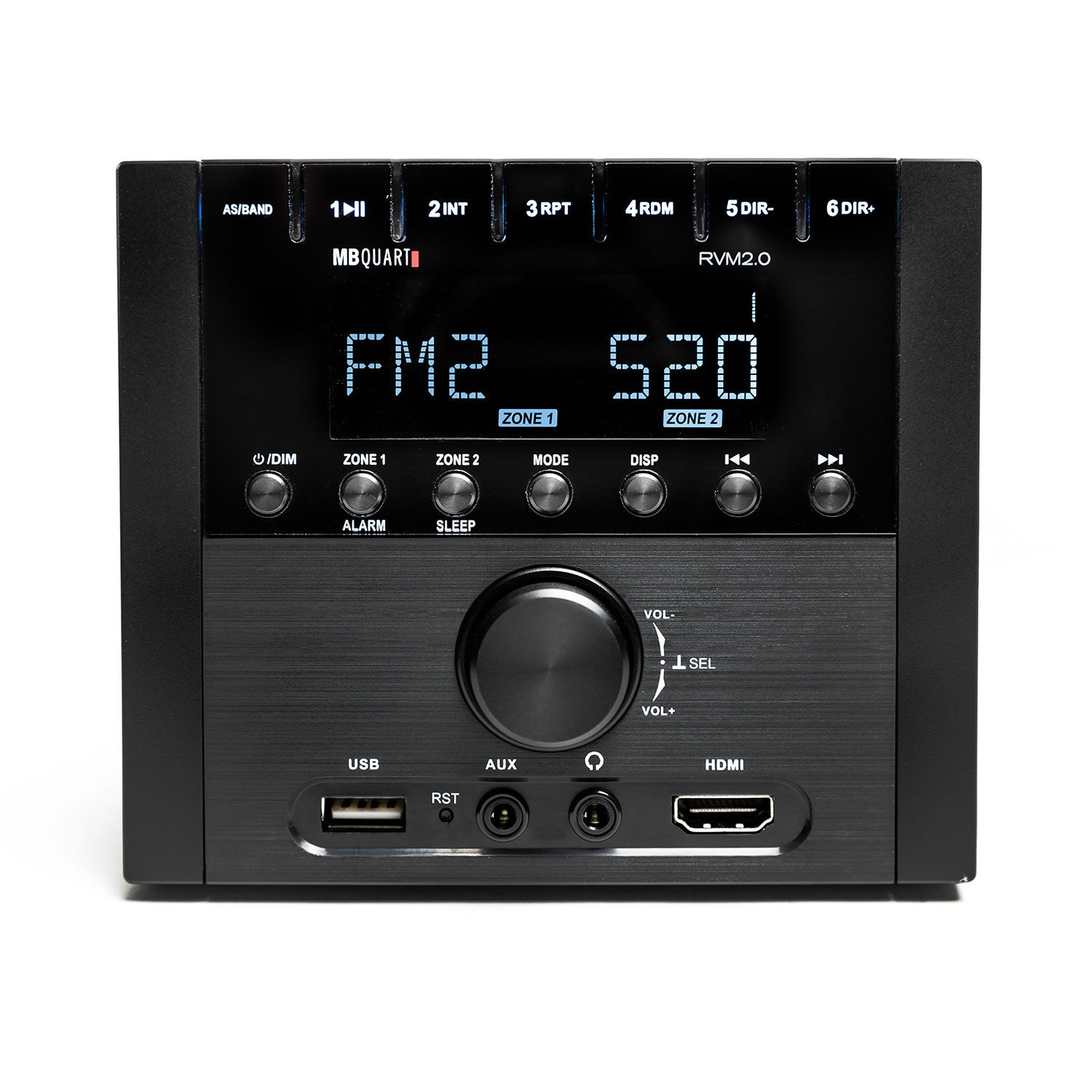

MB Quart RVM2.0 digital multimedia, multi-zone audio control, 160 watt in-dash compact mechless RV source unit with AM/FM and Bluetooth 4.0.
General Features:
-
Apple® Control
Quick control and access of iTunes collection with iPhone, iPod and iPad. -
Source Type
AM/FM/Bluetooth® -
Input Types
Bluetooth, RCA, and USB. The USB supports all new technology MP3, WMA, APE, FLAC and WAV files. -
Bluetooth® Connect
Bluetooth® Connect allows your phone or other Bluetooth enabled device to be quickly paired to the controller without a complicated pairing process. -
Secure Simple Pairing™
Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system. -
Quick-Pair™
No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select "MB Quart" from your Bluetooth menu and you are connected, QUICKLY. -
Built-In Power
Four channels of output. These channels remain active when running external amplifiers (RCA Output) to run additional speakers in the vehicle. -
Control Method
Unit is adjusted by master knob and menu selection. -
AM/FM Tuner Presets
AM: 12 station, FM: 18 station. AM1, AM2, FM1, FM2, FM3 each memorize 6 stations. -
Frequency Range
FM: 87.5-108MHz, AM: 520-1710kHz -
Video Input
HDMI Front/Rear, Pass Through -
Additional Inputs
HDMI THRU PUT: All audio and video from satellite or other digital services are pushed to the TV monitor and audio system. -
USB / Apple® / Charging Port
Yes (Front panel, quick charge) -
Bluetooth® Version
Version 4.0 -
Dual Audio Zone Capability
Control volume in two different areas independently, such as passenger area and outdoor speakers. -
Additional Features
ALARM CLOCK: On/Off Options, Alarm, Sleep, Power Up, Beep.
Specifications:
-
Type
Source Unit -
Brand
MB Quart -
Series
RV -
Category
RV -
Condition
New -
Color
Black -
Crutchfield Available
Yes -
Crutchfield Link
https://www.crutchfield.com/p_049RVM20/MB-Quart-RVM2-0.html -
Warranty
1 Year -
Source Unit Tuner Section FM Stereo Frequency Range
87.5MHz-108MHz -
Source Unit Bluetooth Range (ft)
32 -
Source Unit RMS Power Output (watts)
4 x 20 -
Source Unit Peak Power Output (watts)
4 x 40 -
Source Unit Pre-amp Outputs (Y/N #)

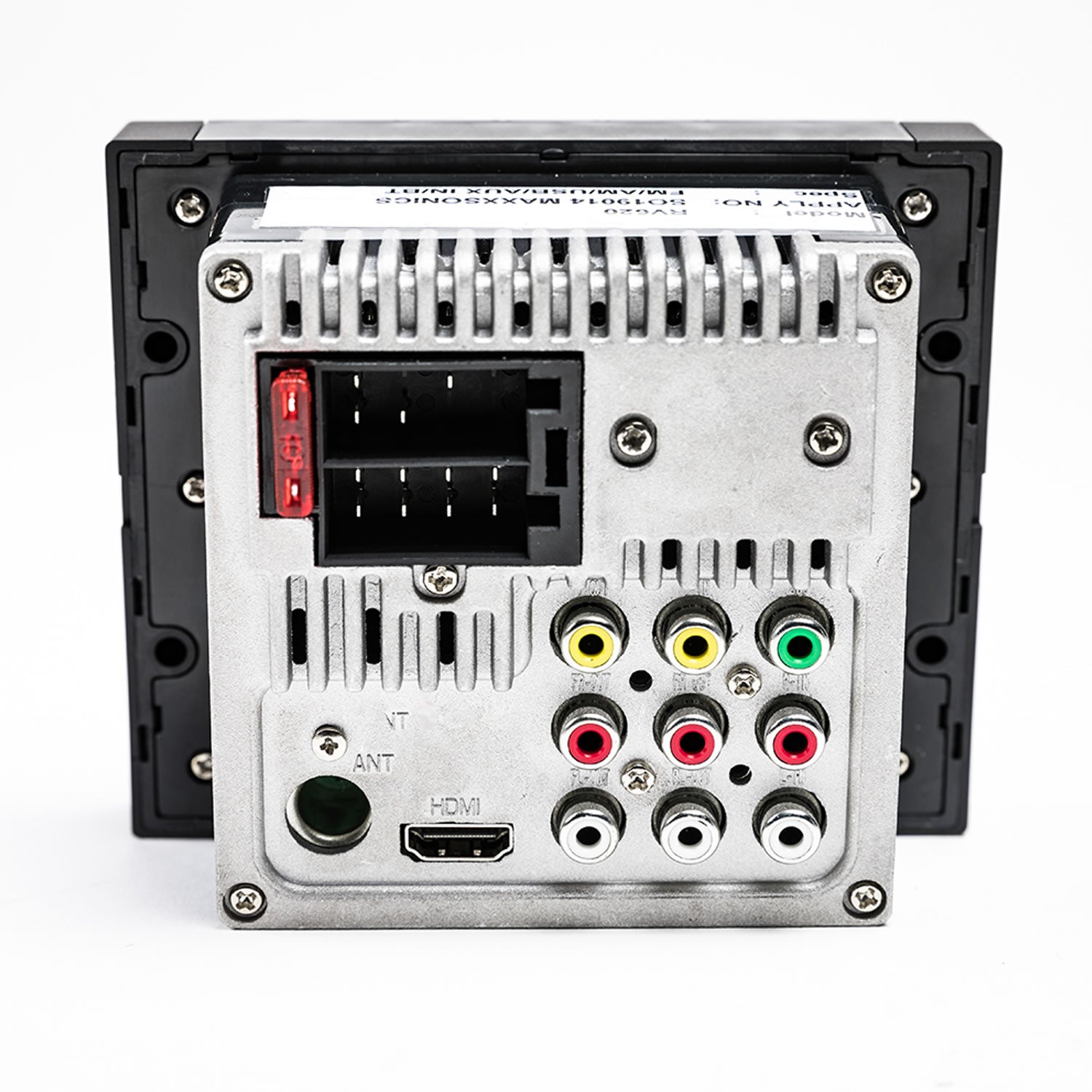

AUDIO: 1 RCA – Subwoofer, AUDIO: 2 RCA Pair – Front/Rear, AUDIO: Headphones – Front Panel -
Source Unit Pre-amp Voltage
2.0V -
Source Unit Minimum Impedance (ohms)
4 -
Source Unit Display Type
LCD -
Source Unit Display Backlit
Yes -
Source Unit Dimensions Mounting Hole (in)
3.88 x 4.0 -
Source Unit Dimensions Total Mounting Depth (in)
1.88 -
Source Unit Dimensions Mounting Bezel (Round) (in)
5.07 x 4.33 x 0.74 - Additional Details MAXIMUM THD+N AT 4 OHMS: 76.2dBA, IDLE CURRENT: 0.3A, MAXIMUM UNDISTORTED PREAMP VOLTAGE (WITH 20K OHM LOAD): 2 Volts, SIGNAL TO NOISE RATIO OF LINE LEVEL OUTPUTS (AT MAX VOLUME): -80.7dBA, PREAMP FREQUENCY RESPONSE (+/- 3.0DB): Bluetooth 20Hz-20KHz / Aux 10Hz-20KHz, AMPLIFIER FREQUENCY RESPONSE (+/- 3.0DB): Bluetooth 20Hz-20KHz / Aux 10Hz-20KHz, STEREO SEPARATION (AUX INPUT): -47dB @ 5kHz, FM MONO USABLE SENSITIVITY: 6.0μV, AM MONO USABLE SENSITIVITY: 23.8μV
