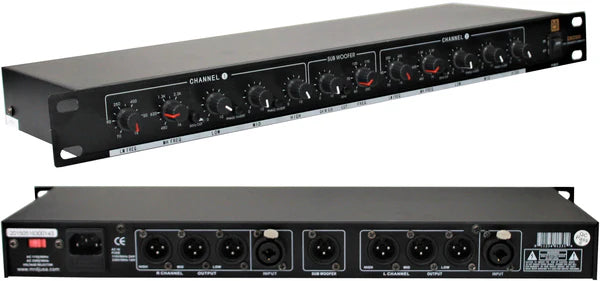

MR DJ USA DXO200+ Professional 2-Way Stereo Electronic Crossover with Dedicated Subwoofer Output, Balanced XLR & 1/4" Inputs – 1U Rackmount

The MR DJ USA DXO200+ is a professional 2-way stereo electronic crossover designed for PA systems, mobile DJ rigs, live sound, clubs, houses of worship, karaoke systems, and permanent audio installations. It divides the incoming audio signal into separate frequency ranges, allowing compatible amplifiers and speakers to handle the frequencies for which they are configured.

Featuring adjustable crossover controls, a dedicated subwoofer output, balanced XLR outputs, XLR and 1/4-inch input connections, and switchable 110V/220V operation, the DXO200+ provides flexible integration into professional sound systems. Its compact 1U 19-inch rackmount chassis makes it suitable for portable equipment racks and fixed installations.

Key Features

🎛️ 2-WAY STEREO ELECTRONIC CROSSOVER – Separates incoming audio into low- and high-frequency ranges for compatible multi-amplifier and speaker systems.

🔊 DEDICATED SUBWOOFER OUTPUT – Adjustable 50Hz–250Hz subwoofer frequency range provides dedicated low-frequency signal routing for compatible subwoofer systems.

🎚️ ADJUSTABLE CROSSOVER CONTROL – Low/high crossover frequency adjustment from 250Hz to 6kHz provides flexible system configuration.

🔌 XLR & 1/4" INPUT CONNECTIVITY – Supports compatible XLR and 1/4-inch audio sources for integration with mixers, processors, and other professional audio equipment.

🎵 BALANCED XLR OUTPUTS – Professional XLR outputs provide connectivity to compatible amplifiers and other downstream audio equipment.

⚡ SWITCHABLE 110V / 220V – Selectable operating voltage allows use with compatible power systems in different regions.

📈 20HZ–25KHZ FREQUENCY RESPONSE – Wide manufacturer-stated operating frequency range supports professional audio applications.

🎧 80 DB SIGNAL-TO-NOISE RATIO – Manufacturer-stated 80 dB signal-to-noise ratio.

🗄️ 1U 19" RACKMOUNT DESIGN – Compact chassis installs into compatible standard 19-inch professional audio equipment racks.

General Features

• Professional 2-way stereo electronic crossover

• Designed for stereo PA applications

• Dedicated subwoofer frequency output

• Adjustable subwoofer crossover control

• Adjustable low/high crossover control

• Subwoofer frequency range from 50Hz to 250Hz

• Low/high crossover range from 250Hz to 6kHz

• XLR audio inputs

• 1/4" audio inputs

• Balanced XLR outputs

• Dedicated subwoofer output

• 20Hz–25kHz frequency response

• 80 dB signal-to-noise ratio

• Switchable 110V / 220V operation

• 19-inch rackmount chassis

• Compact 1U configuration

• Black finish

• Designed for PA, DJ, live sound, and installed audio systems

Specifications

• Brand: MR DJ USA

• Model: DXO200+

• Product Type: 2-Way Stereo Electronic Crossover

• Operating Configuration: 2-Way Stereo

• Frequency Response: 20Hz–25kHz

• Signal-to-Noise Ratio: 80 dB

• Subwoofer Crossover Range: 50Hz–250Hz

• Low / High Crossover Range: 250Hz–6,000Hz

• Input Connections: XLR / 1/4"

• Output Connections: Balanced XLR

• Dedicated Subwoofer Output: Yes

• Input Impedance: 100k Ohms

• Output Impedance: 220 Ohms

• Operating Voltage: Switchable 110V / 220V

• Rack Size: 1U

• Rack Width: 19"

• Dimensions: Approximately 19" W x 5.75" D x 1.75" H

• Product Weight: Approximately 4.4 lbs

• Finish: Black

Compatibility

Designed for integration with compatible professional audio equipment including:

• DJ mixers

• Live sound mixers

• Power amplifiers

• Powered speaker systems

• Subwoofer systems

• Full-range speakers

• Multi-amplifier PA systems

• Audio processors

• Professional rack systems

• Karaoke systems

Fitment Note

A crossover does not power speakers directly. The DXO200+ processes line-level audio signals and should be connected to compatible amplifiers, powered speakers, or other downstream audio equipment.

Crossover frequency settings should be selected according to the specifications of the connected speakers, subwoofers, and amplifiers. Incorrect crossover settings can reduce system performance or place unnecessary stress on speaker components.

Ideal Applications

• Mobile DJ systems

• Professional PA systems

• Live sound reinforcement

• Clubs

• Nightclubs

• Houses of worship

• Karaoke systems

• Concert sound

• Subwoofer integration

• Multi-amplifier speaker systems

• Mobile DJ racks

• Event production

• Auditoriums

• Theaters

• Permanent audio installations

Package Includes

• (1) MR DJ USA DXO200+ Professional 2-Way Stereo Electronic Crossover

• (1) AC Power Cord

• (1) Owner's Manual

Warranty

• 1-Year Manufacturer's Warranty
