Hifonics BXiPro3.0 Digital Bass Processor Epicenter 2CH Hi/Lo Converter w/ Noise Reduction
Hifonics BXiPro3.0 Digital Bass Processor Epicenter 2CH Hi/Lo Converter w/ Noise Reduction

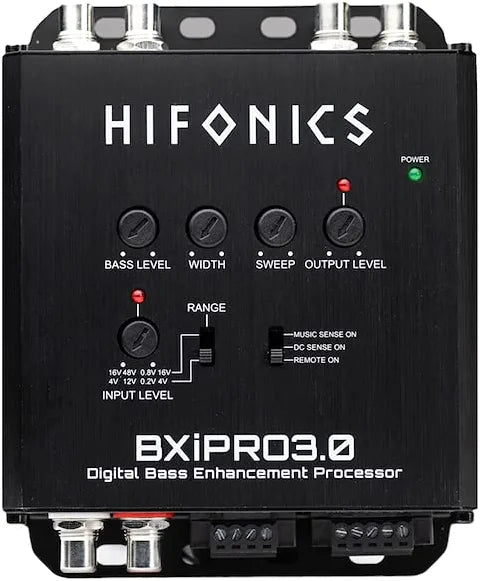

The Hifonics BXiPRO3.0 Digital Bass Enhancement Processor integrates with an upgraded subwoofer system into any vehicle. Showcasing a compact design with a sleek finish, this all-in-one processor gives you 3x the power at half the size in space. With adjustable mounting solutions and multipoint installation options, including placing the processor behind dash-concealed locations, this processor will be as flexible as your installation demands. With rugged, reinforced connectors that feature Tiffany Style differential noise inputs, you’ll not only receive a processor that has superior connectivity where you need it the most, but you’ll also embrace selectable multilevel inputs and dual remote outputs (high-levels out and sub-levels out) that connect 2 different amplifiers. This processor also comes with a wired, adjustable, dash-mountable remote.
General Features:

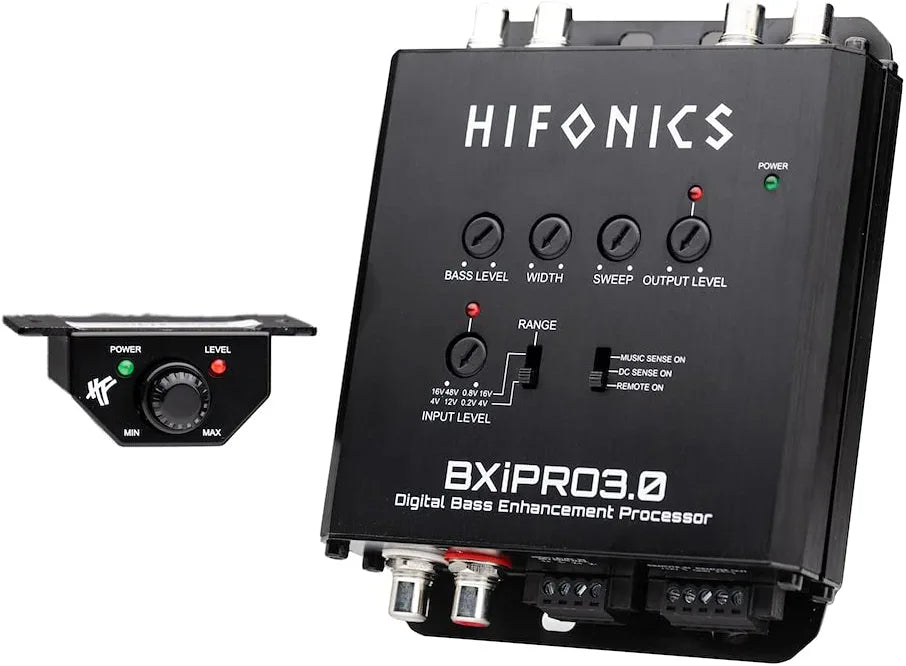

- BXiPro Bass Enhancer Processor with Dash Mount Remote Control
- Enhances and restores the bass level
- Screw-in power and speaker connectors to chassis for secure connections that prevent disconnection
- Dual-function bass remote
- Remote wire input, DC sense, and music sense turn on
- Input and output signal clip indicators
- Mono adjustable output level (can be controlled by bass remote)
- 48v high-level inputs
- Ability to use test tones to set input and output levels
- Fine-tuning adjustability using bass width and sweep
- Fixed 4v full range output
- Small profile
- Tiffany-style RCA connectors
- Low and high-level audio inputs (speaker-level inputs)
- Balanced differential inputs (for noise reduction)
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Functions & Operations:
- Adjustable bass enhancement preamp output
- Bass remote input

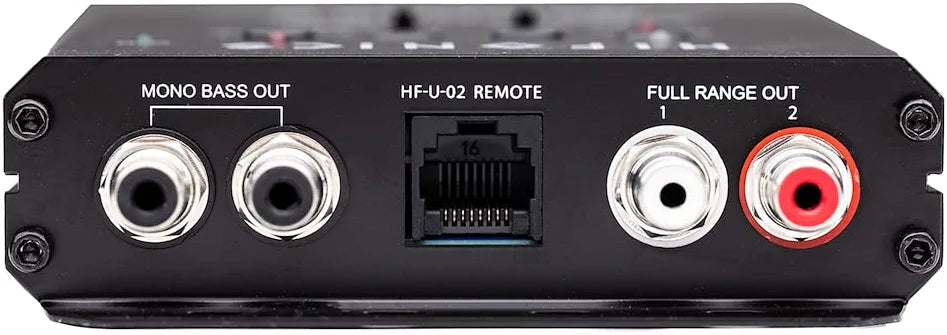

- Preamp full range output
- Adjustable bass level output
- Adjustable bass width and sweep adjustments
- Output level control with clip indicators
- Input level control with clip indicators
- Selectable input level range (RCA or speaker level)
- Selectable turn on the trigger (remote wire input, DC sense, and signal sense)

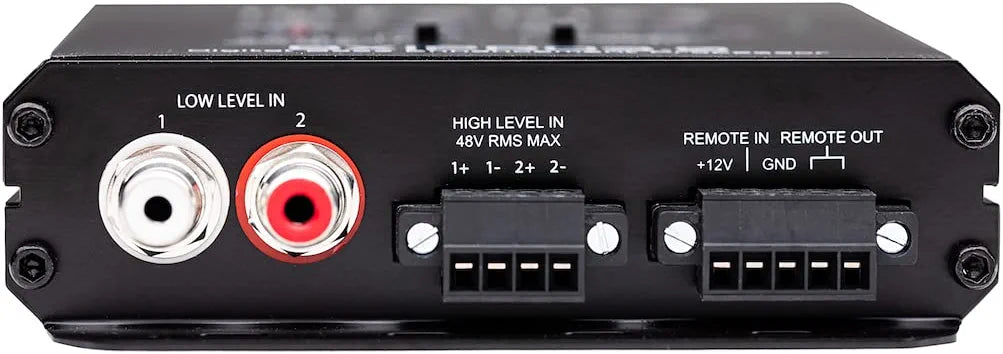

- Low-level inputs (RCA level)
- High-level input (speaker level)
- Power connector with two remote output trigger wires
- Dual concentric bass knob (A. bass level, B. output level)
Product Specifications:
- Fuse value: 1A mini ATC
- Voltage range: 9.5V -15V
- Bass remote type: HF-U-02
- Fixed voltage output full range: 4V
- Adjustable subwoofer output voltage: 0V -9V
- Maximally Flat Frequency Response Main: (-3dB) 10Hz to >50kHz
- Input Impedance Low-level inputs: 20k Ohms
- Input Impedance High-level inputs: 20k Ohms
- Maximum high-level Input Voltage on any input before clipping: >48V
- Maximum Output voltage at 1.0% THD+N (subwoofer output): 9.0V
- Signal to Noise Ratio (ref to 2Vrms out, unity gain): -84.0dBA
- EQ boost: Variable to +8.1dB
- Unit turn on options: 30mV High-Level Audio, 59mV RCA Audio, 2.2V DC Offset
- Current Draw: 0.32A
- Turn on Delay Time: 0.1 seconds
- Setup test tone track: 100 Hz & 1000Hz
- Dimensions: 109mm W x134mm D x 30.5mm H
