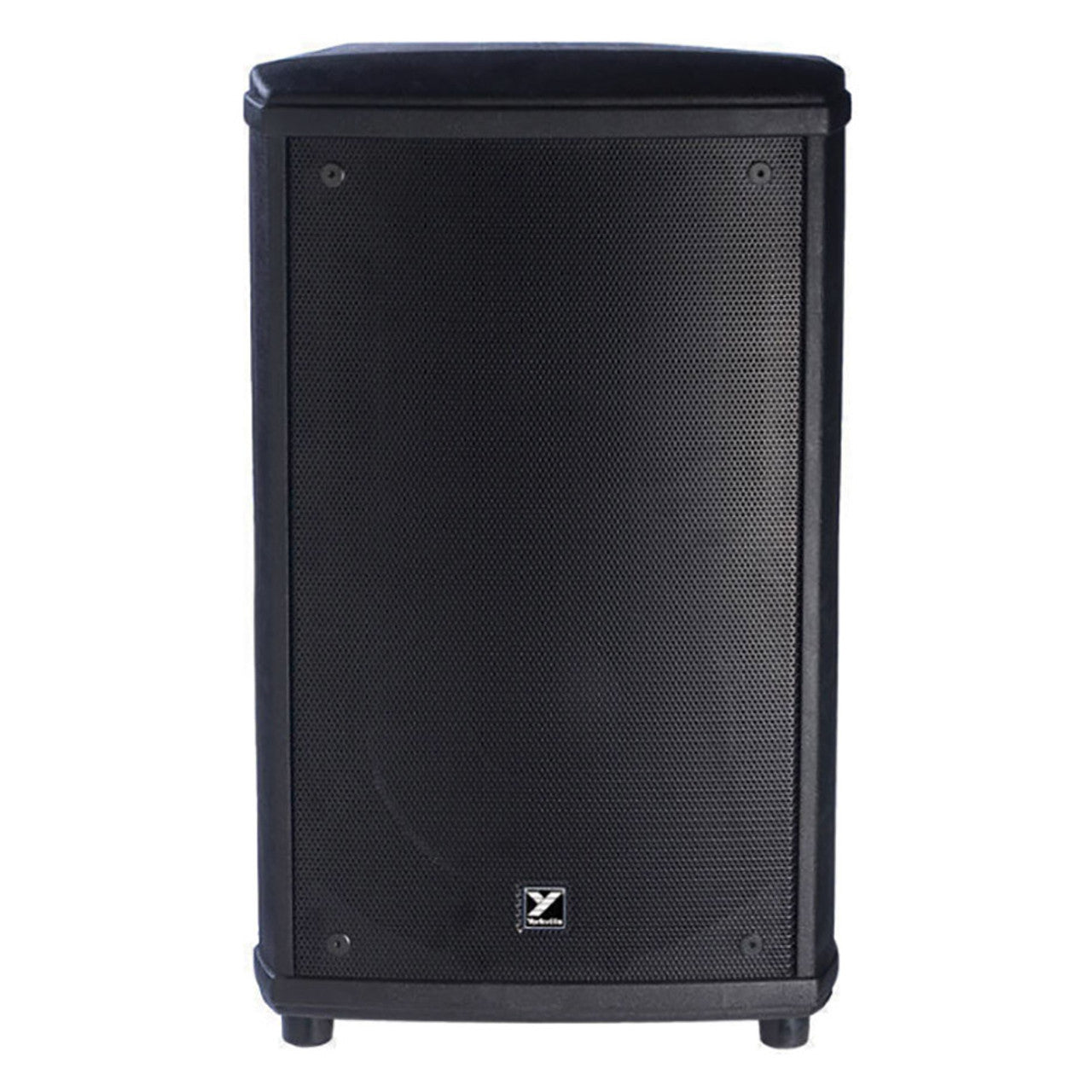

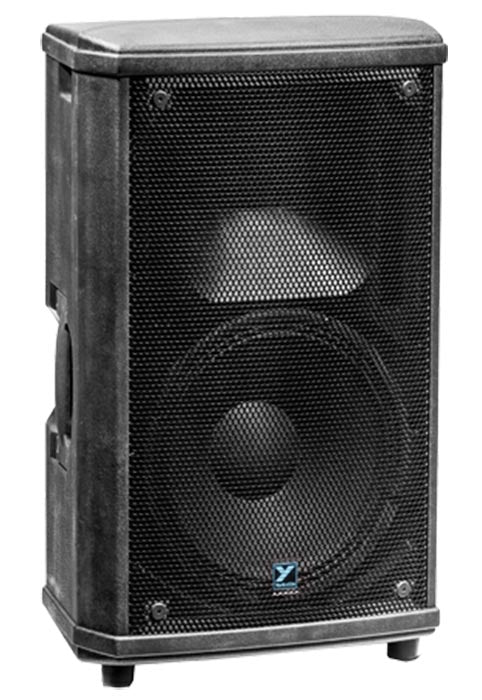

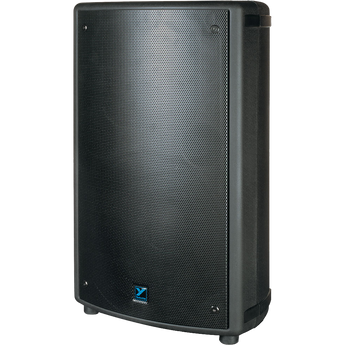

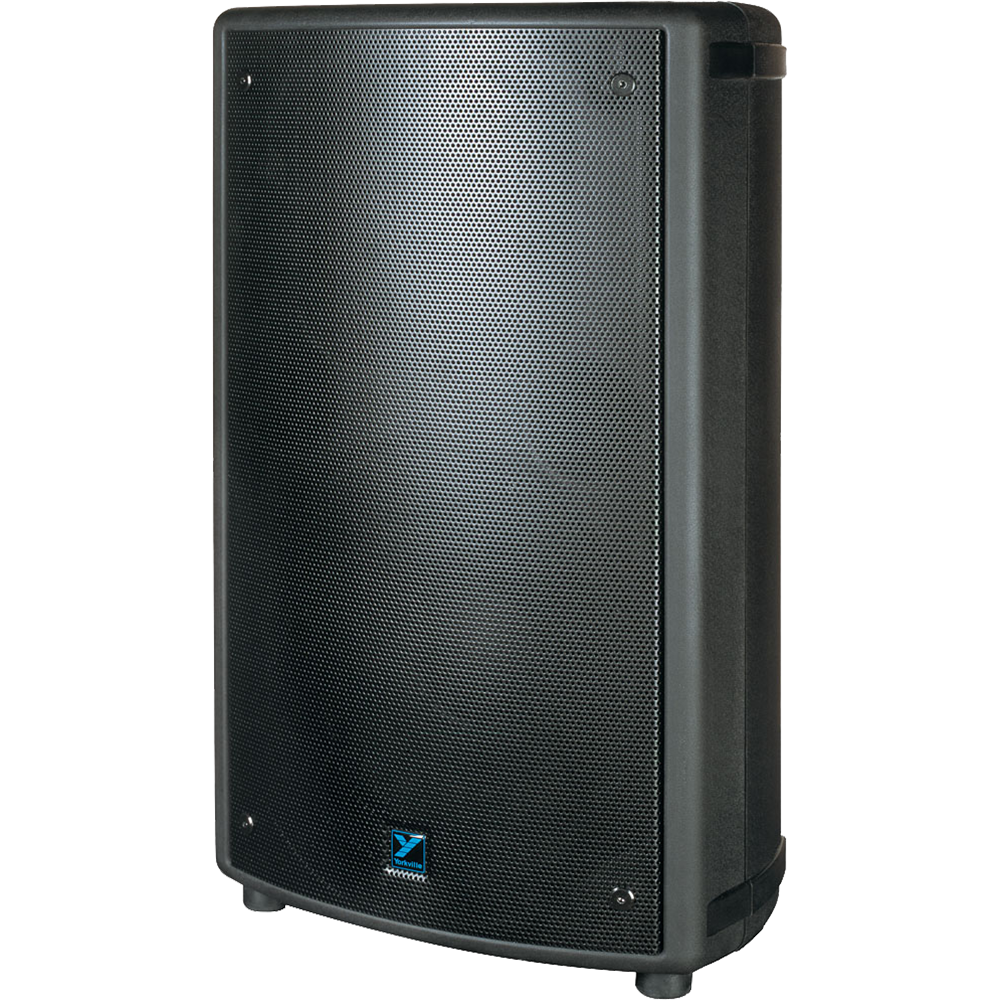

Yorkville Sound NX55P-2, 2-Way Powered Loudspeaker (12 Inch)
Guaranteed Fitment
Always the correct partIn-House Experts
We know our productsYorkville Sound NX55P-2, 2-Way Powered Loudspeaker (12 Inch)
NX 12” Powered Loudspeaker
NX loudspeakers have earned a reputation for proven reliability for over twenty years. The traditional analog design works equally well as a front-of-house speaker or stage monitor. Featuring a 12” woofer and 2000 watts of peak power (1000 watts program), the NX55P-2 is the most powerful speaker in the NX series. The rear panel features a master level control, a selectable LF roll off for use with a subwoofer or as a vocal monitor, and a switchable onboard mixer section. When enabled, this provides an XLR microphone input and 1/4" line inputs with level controls and 2-band EQ. Link inputs and outputs provide balanced connectivity to other cabinets. Up to three onboard mixers can be active in a linked system, providing up to three mic and six line inputs without requiring an external mixer. The NX55P-2's inputs and controls are well-protected, so it can be used in any orientation. It was carefully designed for low operating temperatures and reduced heat production to be placed close to walls, floors, and other speakers.
General Features:
- 2000 W Peak Power (1000 W Program)
- 12” LF Driver with 3” Voice Coil
- 1.4” HF Driver
- 1x XLR Mic Input, 2x 1/4" Line Inputs, 1x XLR and 1x 1/4” Link Inputs
- 1x XLR and 1x 1/4" Link Outputs
- Integrated Mixer with 2-Band EQ
- Switchable LF Rolloff for Use with Subwoofers
- Integrated Flying Hardware
- Made in Canada
- System Type: Powered Loudspeaker
- Power Rating: 2000 W Peak (1000 W Program)
- Biampable: Self-Powered
- Biamp Operation Only: Yes
- Sensitivity (dB AT 1Watt/1m): 100 dB
- Max SPL: 134 dB Peak (128 dB Continuous)
- Frequency Response (Hz +/- 3dB): 45 Hz - 18 kHz
- Crossover Frequency: 2 kHz
- HF Driver(s): 1.4” Aluminum Diaphragm, 1” Exit
- HF Dispersion (°H x °V): 80° x 50°
- HF Protection: Thermal / Peak Limiter
- LF Driver(s): 12” with 3” Voice Coil
- LF Protection: Thermal / Overcurrent
- HF Amplifier Type: 2-Tier Class H
- LF Amplifier Type: Class D
- Power Consumption (typ/max): 120 / 310 VA
- Inputs: 1x XLR (Mic)
- 2x 1/4" (Line / CD)
- 1x XLR
- 1x 1/4" Link Inputs
- Input Sensitivity (Vrms Sine): 1.23 Vrms Sine, +4dBv
- Controls: Master Level, LF Rolloff (60 Hz / 100 Hz)
- Mixer On / Off
- Mic Level
- Line / CD Level
- Treble
- Bass
- Mixer Controls: Line Level
- Mic Level
- Bass
- Treble
- Limiter: Yes
- LED Indicators: Power, Clip, Limit
- Bar Handles: 1 (Side)
- Flypoints : 4 (2x Top, 2x Bottom), 1x Pullback
- Flying Hardware: 1/4-20
- Optional Flying Hardware: NXF Flyware
- Pole Mount Adapter (1 3/8 1 (Bottom)
- Enclosure Materials: Molded Polypropylene
- Dimensions (DWH) : 12.25" x 16" x 26.5" (31.1 cm x 40.6 cm x 67.3 cm)
- Weight: 41 lbs / 18.6 kg
