A46-5511 FORD models 1989-2000 amp integration for premium system
Guaranteed Fitment
Always the correct partIn-House Experts
We know our productsAbsolute A46-5511 - FORD models 1989-2000 amp integration for a premium system
Not For (Amplified / Premium) Systems That Have RAP Or VSS Features:
Will Not Work With Cars That Have These Below:
GM Chime Control, Onstar, Or Y91 Premium Bose
VSS (Vehicle Speed Sensor) Volume That Increases Or Decreases With Vehicle Speed
DATA-Bus / LAN-Bus/ CAN-Bus/ Systems Equipped With Rap Feature Present
General Features:

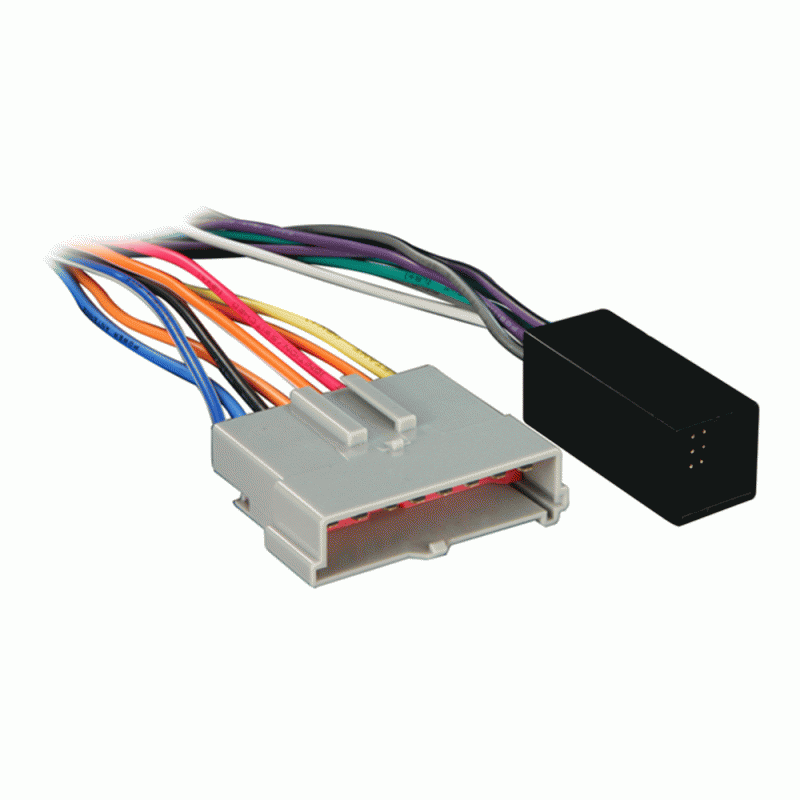

- Factory amplifier integration harness
- Power and 4-Speaker
- One 8-Pin power plug and one 8-Pin speaker plug
- A 1.5K Ohm resistor can be used on the amp-remote wire to eliminate turn-on pop
- Compatible with 1989-2000 Ford Mustang
- Allows for the installation of an aftermarket radio using the existing factory wiring and connectors
- No cutting of factory wiring needed
- Check the Installation Instructions to see basic instructions and a compatibility list
- 1-year Manufacturer's warranty
Connections:
- Yellow 12V Constant
- Red 12V Accessory
- Black Ground
- Orange Dash Light Dimmer/Illumination
- Green Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White Left Front Speaker (+)
- White with Black Stripe Left Front Speaker (-)
- Purple Right Rear Speaker (+)
- Purple with Black Stripe Right Rear Speaker (-)
- Gray Right Front Speaker (+)
- Gray with Black Stripe Right Front Speaker (-)
Compatibility List:
- FORD AEROSTAR 1992 to 1997 With Rear Headphone & Equalizer
- Bronco (full size) 1992-1996
- FORD BRONCO II 1989 to 1990 Eddie Bauer/Premium Sound
- FORD CROWN VICTORIA 1992 to 1994 Premium/JBL SYSTEM
- FORD ESCORT 1991 to 1996 Premium Sound
- FORD EXPLORER 1991 to 1994 Premium/JBL SYSTEM
- FORD LTD CROWN VICTORIA 1990 to 1991 Premium Sound
- FORD PROBE 1993 to 1997 Premium Sound
- FORD RANGER 1989 to 1994 Premium Sound
- FORD TAURUS 1990 to 1995 JBL SYSTEM/Premium Sound
- FORD THUNDERBIRD 1989 to 1997 JBL SYSTEM/Premium Sound
- FORD WINDSTAR 1995 to 1998 JBL SYSTEM/Premium Sound
- LINCOLN CONTINENTAL 1988 to 1994 JBL SYSTEM
- LINCOLN CONTINENTAL 1988 to 1994 Premium Sound
- LINCOLN LSC 1990 to 1992
- LINCOLN MARK VII 1990 to 1990
- LINCOLN MARK VII 1991 to 1993 JBL SYSTEM
- LINCOLN MARK VIII 1994 to 1994
- LINCOLN TOWN CAR 1990 to 1994 JBL SYSTEM
- LINCOLN TOWN CAR 1990 to 1994 Premium Sound
- MAZDA B SERIES PICKUP 1994 to 1994 Premium Sound
- MAZDA NAVAJO 1991 to 1994 Premium Sound
- MERCURY COUGAR 1994 to 1998 JBL/Premium Sound
- MERCURY GRAND MARQUIS 1990 to 1994 Premium Sound
- MERCURY SABLE 1990 to 1995 JBL/Premium Sound
- MERCURY VILLAGER 1993 to 1995 JBL SYSTEM
- NISSAN QUEST 1993 to 1995 Premium Sound
