MB Quart DA2-500.5D Discus 500 Watt Waterproof 5 Channel Amplifier

$480.00 Sold out
Shipping calculated at checkout.

Pickup currently unavailable at 1800 E Washington Blvd

Have Questions?
DA2-500.5D

Brand: MB Quart

Description

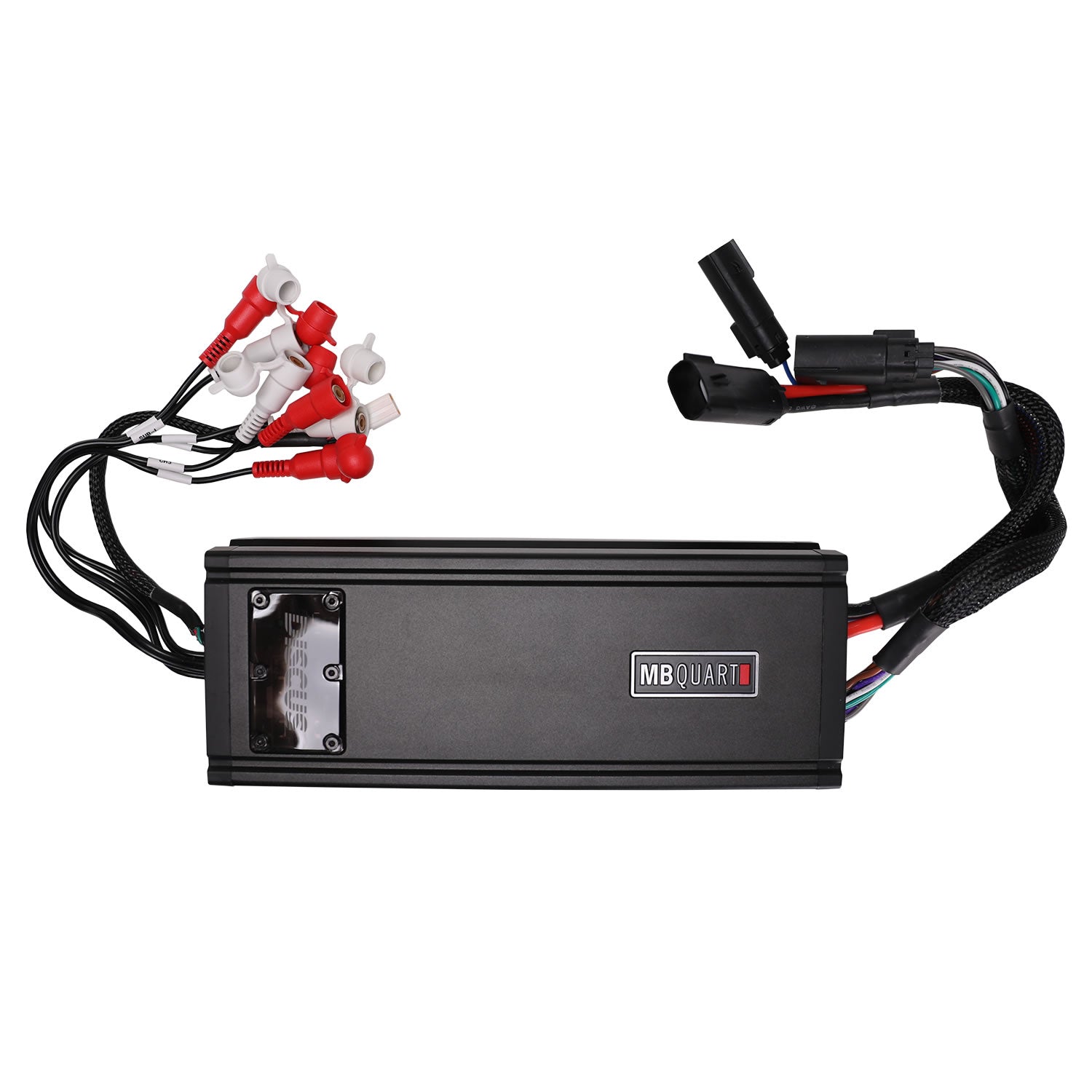

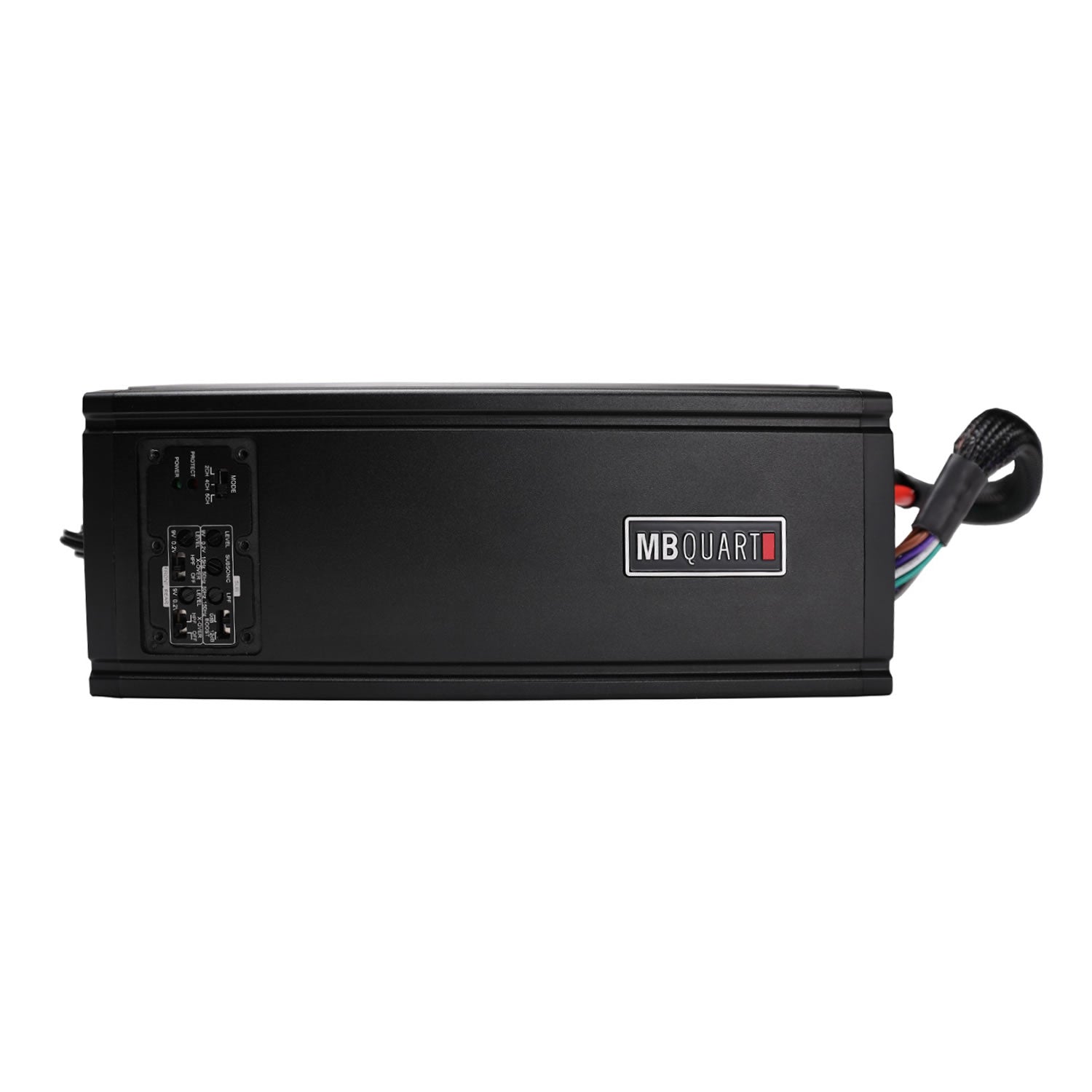

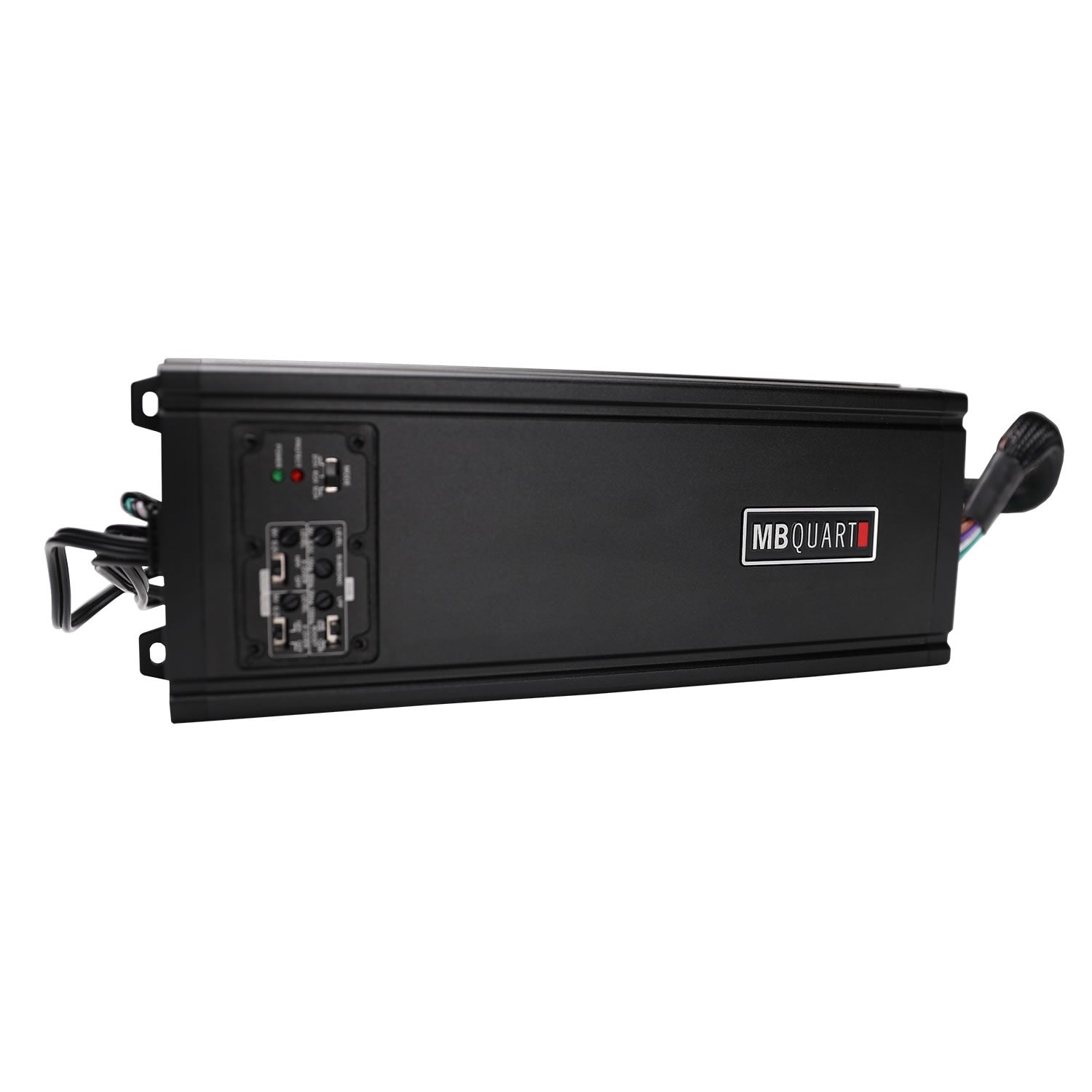

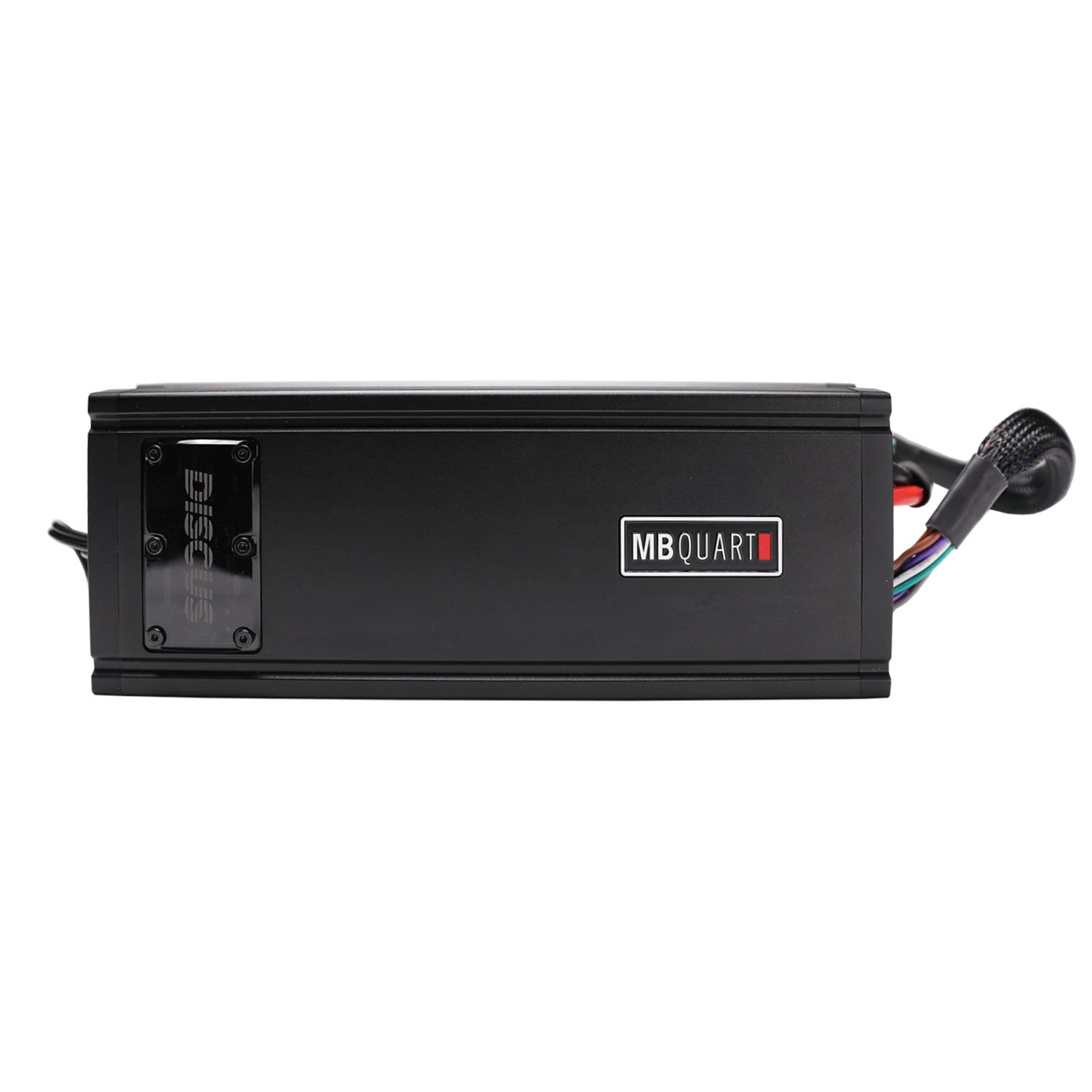

MB Quart DA2-500.5D Discus 500 Watt Waterproof 5 Channel Amplifier

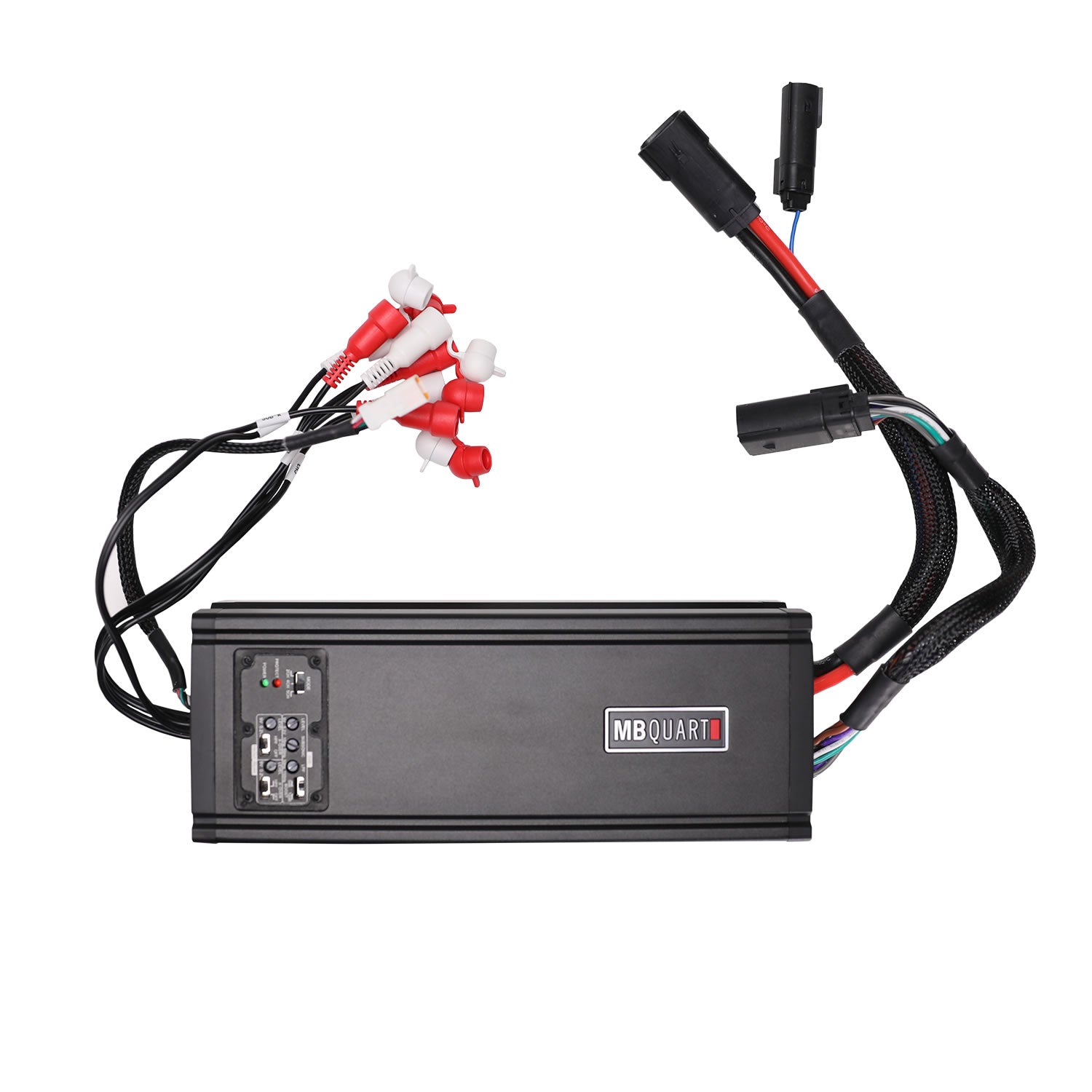

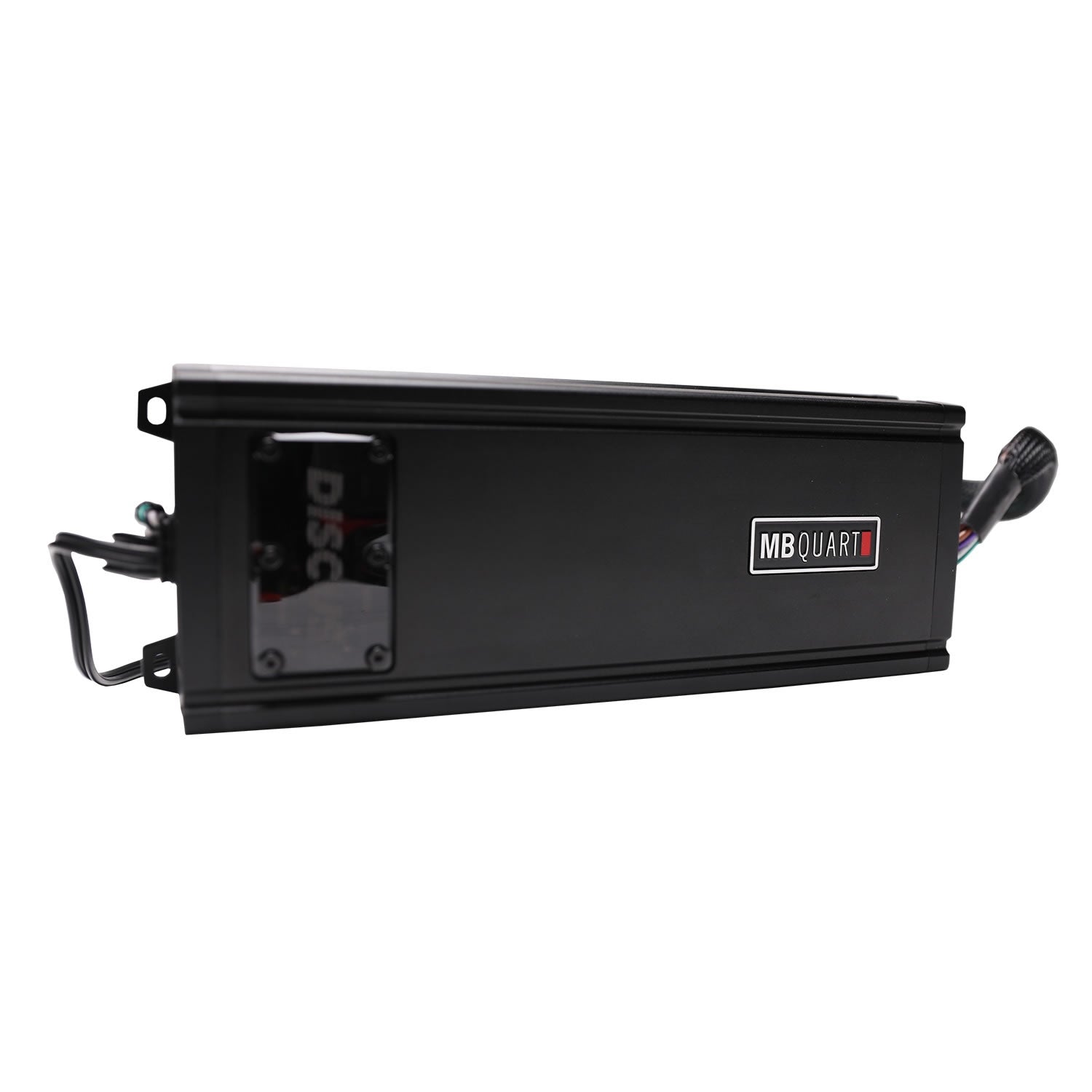

MB Quart Discus DA2-500.5D compact waterproof 500 watt five channel amplifier with top mounted controls, potted internals, and waterproof connectors. Bass remote is included.

General Features:

  • Compatible Vehicle Fitment
    Universal
  • Marine Grade Protection / IPX Rating
    Meets or exceeds IP67 standards for waterproof and dustproof.
  • Low Noise Preamplifier Circuit
    Q-Stasis Pre Amplifier Stage: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.

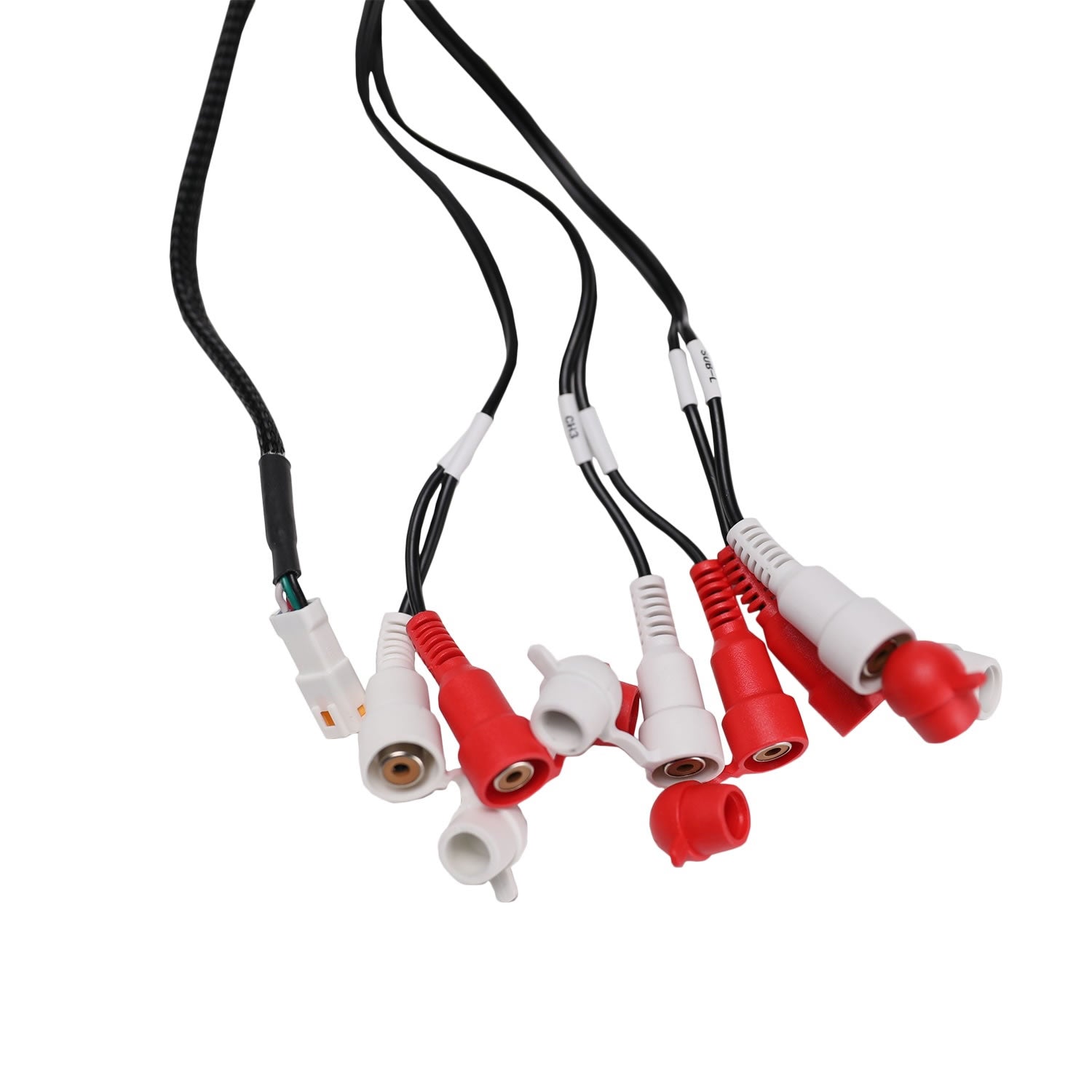

  • RCA Inputs
    Prewired to PC Board for additional protection. Leave connector cover closed on RCA jacks that are not used.
  • Operation Mode
    2 / 4 / 5 Channel
  • Crossover Type
    Variable electronic crossovers allow for complete control of the sound.
  • Electronic Equalizer
    Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier.
  • Class / Topology
    Class D: Highly efficient circuit topology which helps the amplifier develop a lot of power in a compact heatsink.
  • Output Device Technology
    MB Quart output devices, FLUID-FETS are painstakingly selected for their ability to efficiently produce power and mimic the sound quality of the highest end home amplifiers.
  • Heat Sink
    Heavy duty heat-sink efficiently moves heat from the MOSFET where it can be cooled.
  • Power Supply
    Robust premium grade MOSFET Pulse Width Modulation power supply allows the amplifier to produce efficient power without taxing the electrical system.

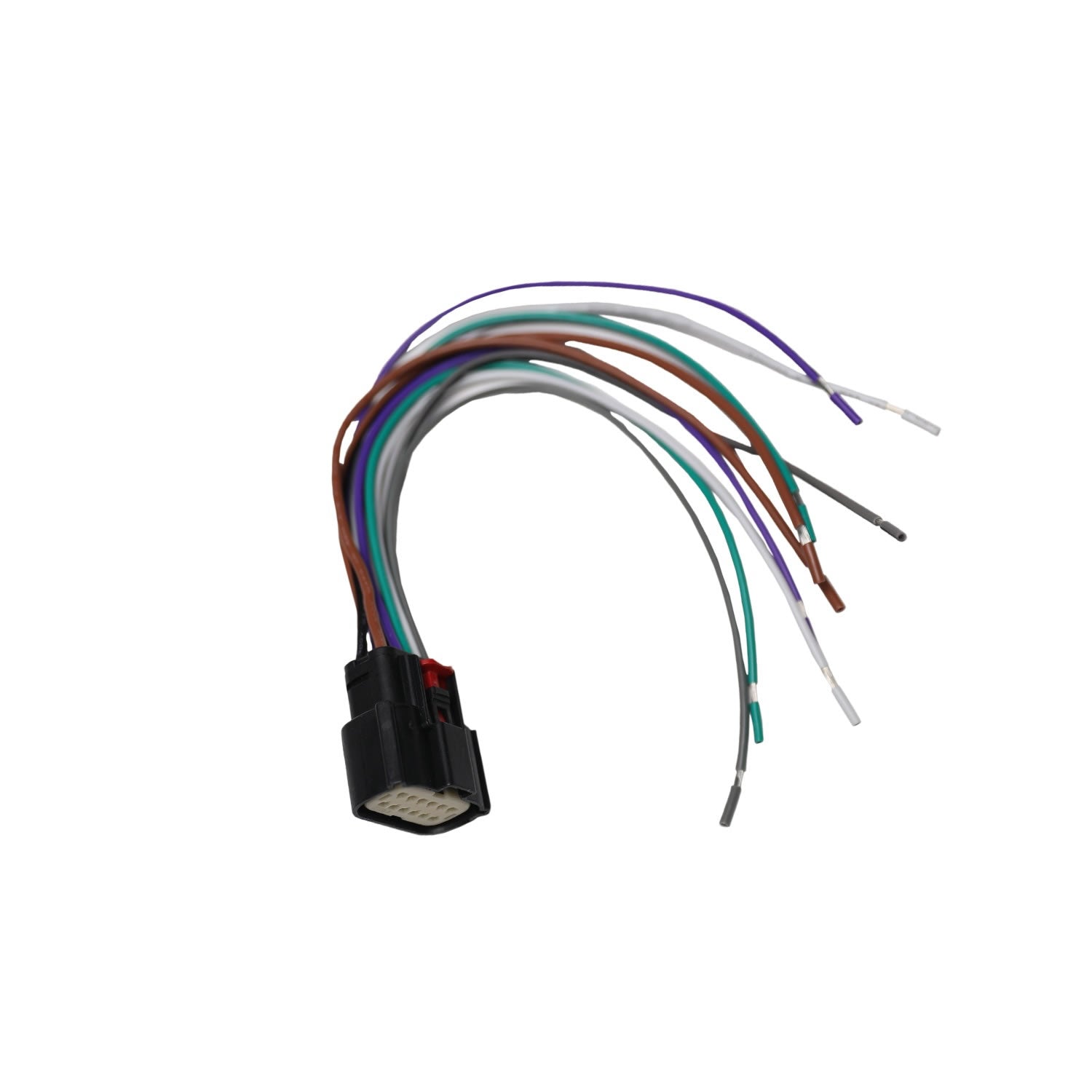

  • Output Connections

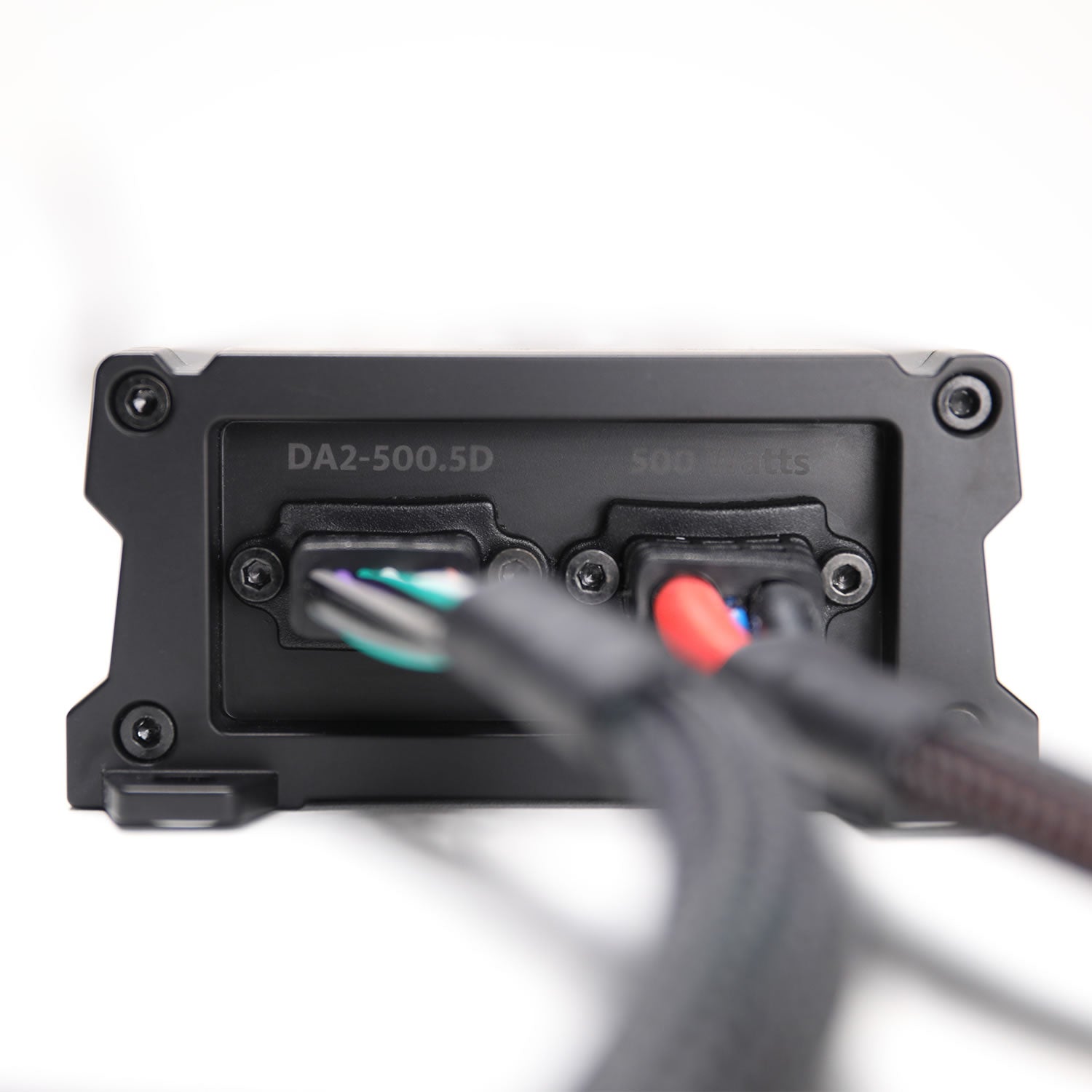

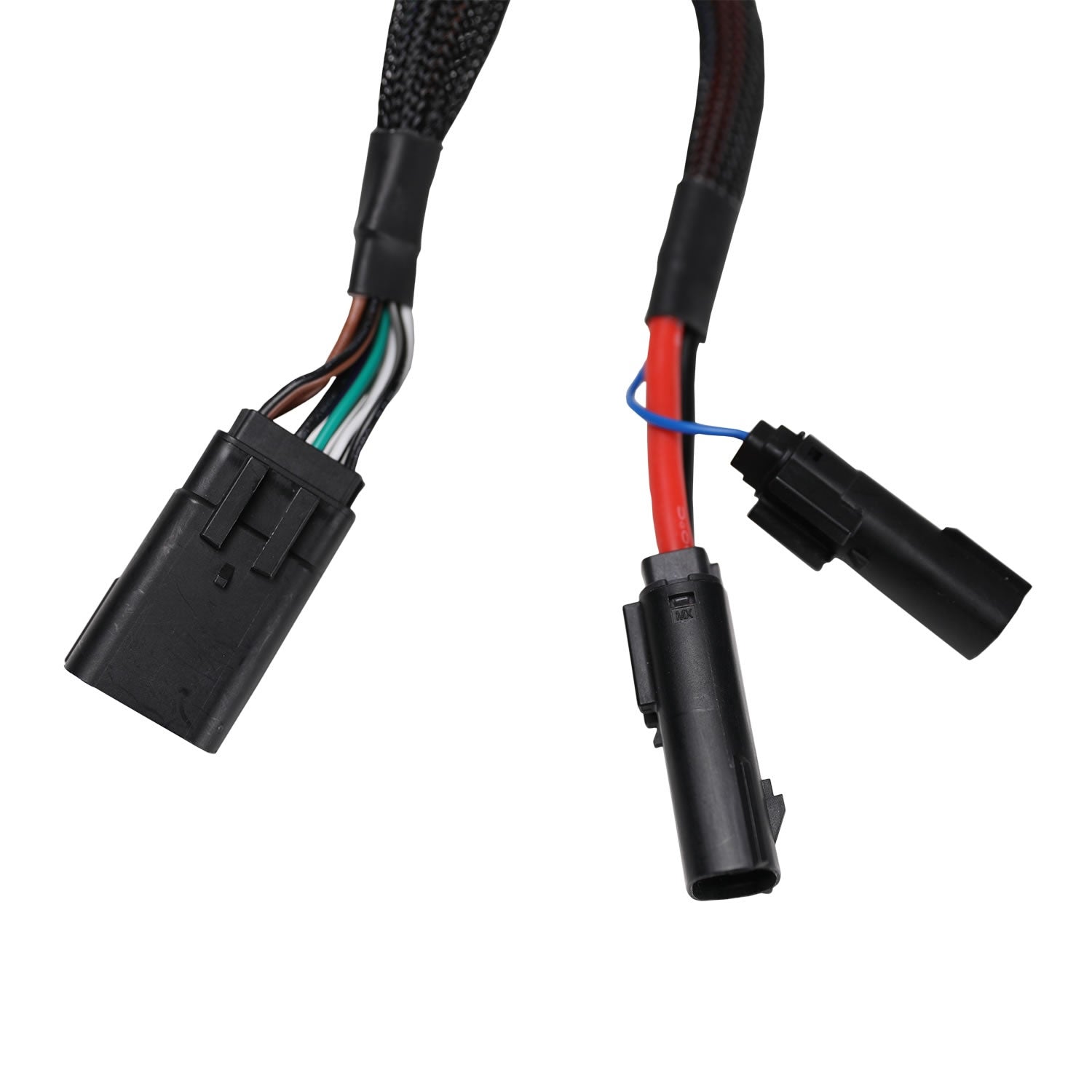

    Waterproof connectors designed to provide a secure moisture-resistant connection, ensuring reliable signal transmission and preventing corrosion or damage in environments exposed to water or humidity.
  • Connection Type
    Waterproof connectors designed to provide a secure moisture-resistant connection, ensuring reliable signal transmission and preventing corrosion or damage in environments exposed to water or humidity.
  • LED System Protection Circuitry Diagnostics
    Monitor overload and speaker short protection with illuminated indicators on the amplifier top mounted control panel.

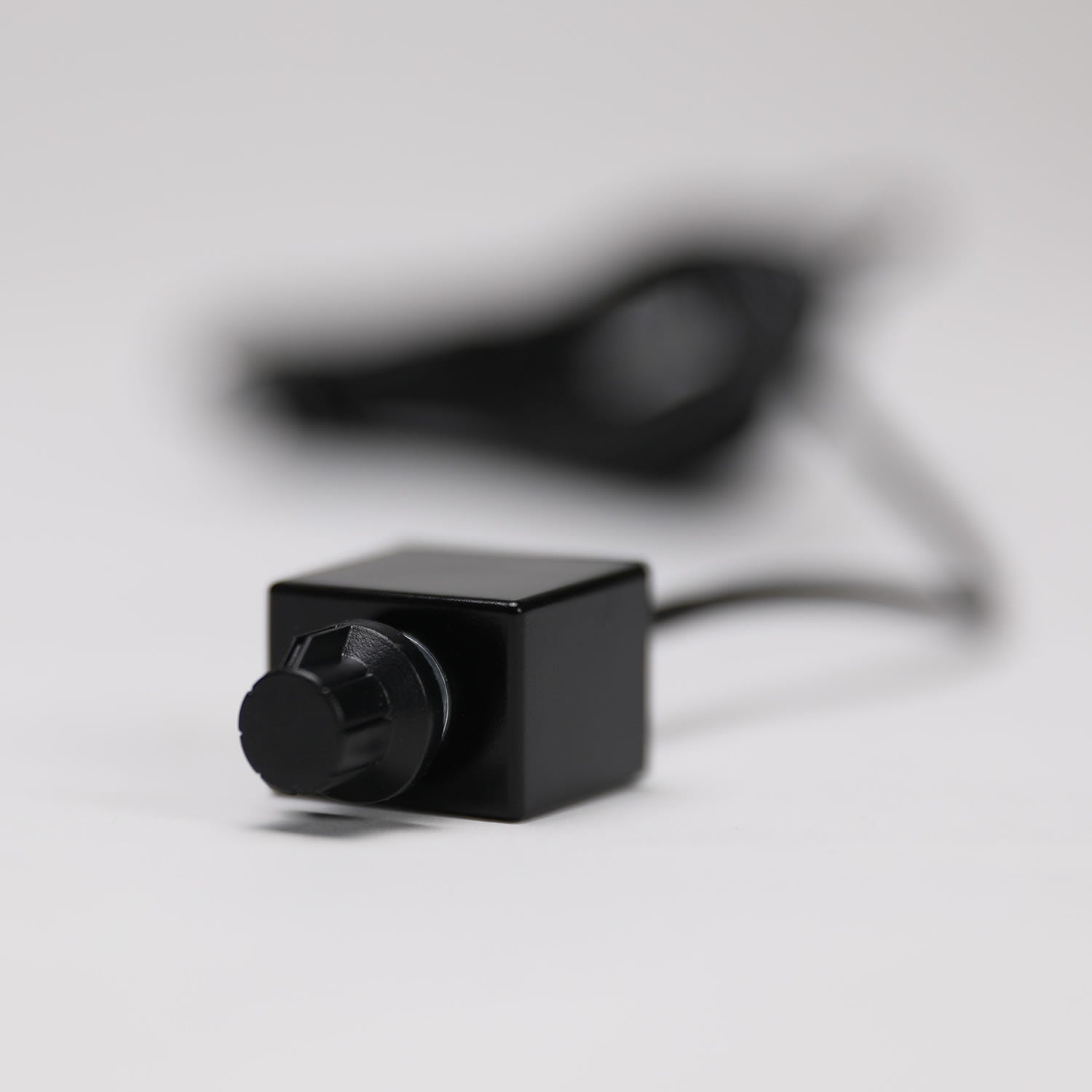

  • Bass Remote Included
    Included: Wired Bass Remote allows adjustments to bass frequencies to be made from the control mounted anywhere in the vehicle.
  • Additional Features

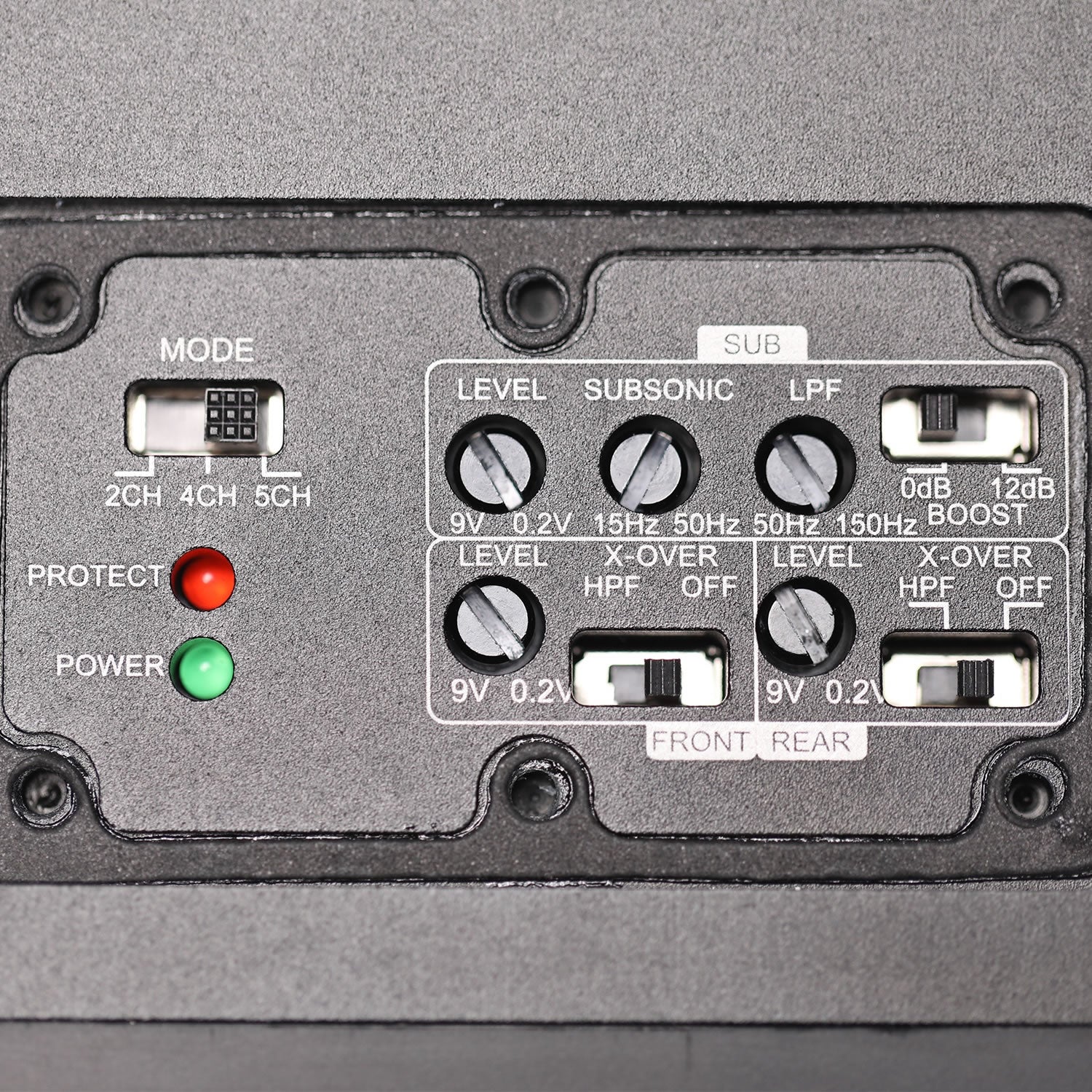

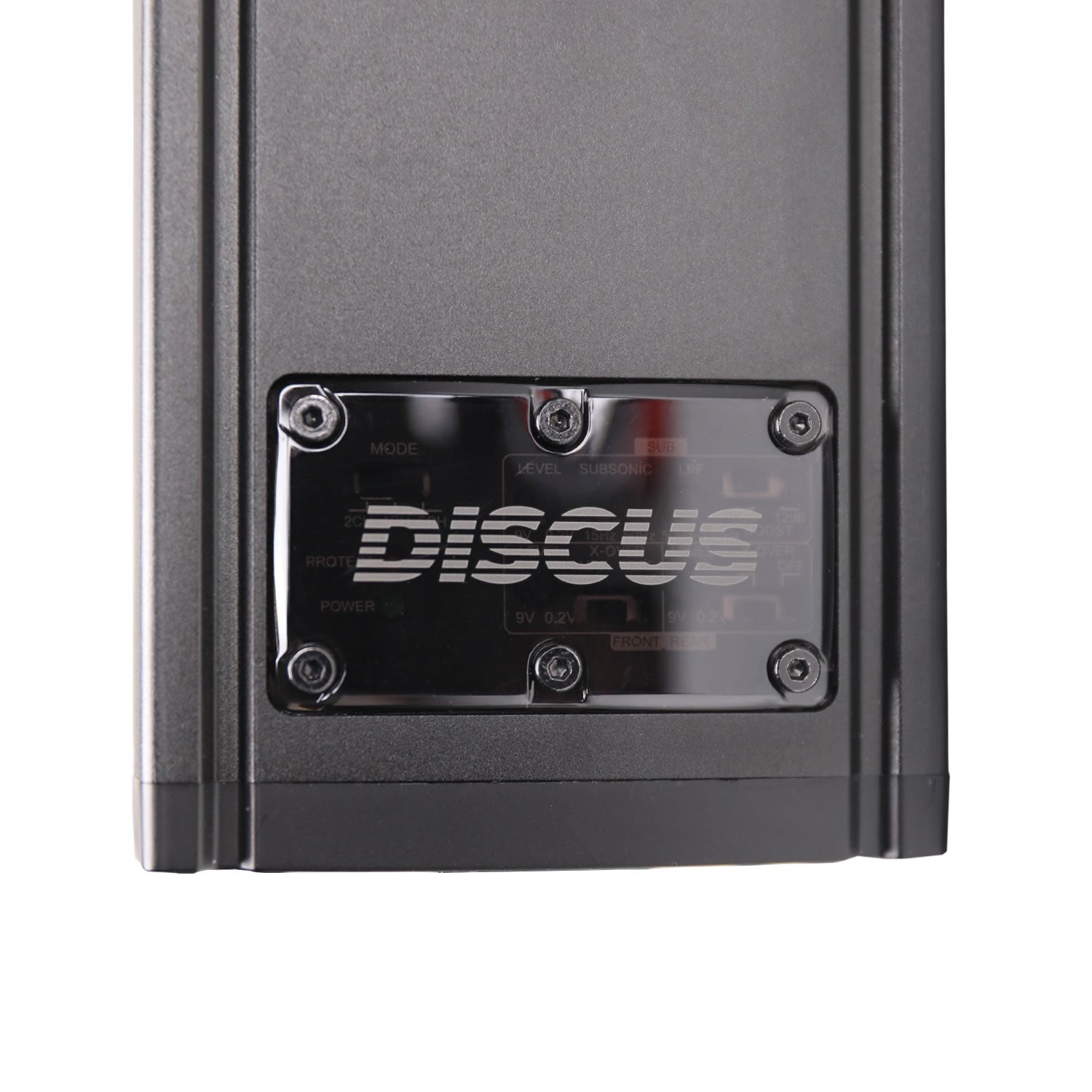

    Top Mounted Controls: Sound contouring with on-board crossover, bass boost, and adjustable input sensitivity are all concealed behind a sealed, top mounted cover.

Specifications:

  • Type
    Amplifier
  • Brand
    MB Quart
  • Series
    Discus
  • Category
    Marine, Mobile, Powersports
  • Condition
    New
  • Color
    Black
  • Warranty
    1 Year
  • IPX Rating
    IP67
  • Compatible Vehicles
    Universal
  • Amp Class
    Class D
  • Amp Total Channels
    5
  • Amp Max Power (watts)
    500
  • Amp Power @ 1 Ohm (ch x watts)
    1 x 350 Watts: CH5 Only
  • Amp Power @ 2 Ohms (ch x watts)
    4 x 50 + 1 x 225
  • Amp Power @ 4 Ohms (ch x watts)
    4 x 35 + 1 x 150
  • Amp Mono Bridged @ 4 Ohms (ch x watts)
    2 x 100 CH1-4
  • Amp Crossover
    Electronic
  • Amp Variable High Pass Crossover 12dB per Octave
    CH1 & CH2: Switched Full/HPF Level 0.2V-9V, CH3 & CH4: Switched Full/HPF Level 0.2V-9V
  • Amp Variable Low Pass Crossover 12dB per Octave
    CH5 ONLY: 50Hz-150Hz
  • Amp Bass Boost
    Switchable 0dB and 12dB
  • Amp Subsonic Filter
    CH5 ONLY: 15Hz-50Hz
  • Amp Variable Voltage
    0.2V-9V
  • Amp Power Terminal 12v/GND
    4 AWG
  • Amp Speaker Terminal Wire Gauge
    12 AWG
  • Amp Fusing
    40A External
