Cerwin Vega CVPM400.4D CVPM Mini-Series 4-Channel Full Range Class-D Amplifier
Guaranteed Fitment
Always the correct partIn-House Experts
We know our products
Cerwin Vega CVPM400.4D CVPM Mini-Series 4-Channel Full Range Class-D Amplifier
Get ready to amplify your driving experience with the Cerwin-Vega CVPM Performance Series Amplifiers—designed to make legendary Cerwin-Vega sound accessible for everyone. Whether you're looking to upgrade your car audio system or build it from scratch, the CVPM series delivers outstanding performance, versatility, and reliability at a price that fits your budget.
Affordable Power, Uncompromising Quality
- Tailored for Your Needs: Choose from a wide variety of mono and multi-channel options to perfectly match your setup.
- High Value, High Performance: Experience the Cerwin-Vega LOUD sound without breaking the bank.
- Designed for Excellence: Built to deliver clean, powerful output for an unmatched listening experience.
The Sound of LOUD
- Dynamic Power Output: Engineered to push your speakers and subs to their fullest potential.
- Precision Audio: Tuned for deep bass, crisp highs, and rich mids to transform your music into an immersive experience.
- Reliable Performance: Sturdy construction ensures long-lasting durability and consistent performance, no matter how hard you push it.
Your Gateway to the LOUD Life
The CVPM Performance Series Amplifiers offer the perfect balance of price, power, and performance. Whether you’re a bass-head craving earth-shaking lows or an audiophile seeking clean, balanced sound, the CVPM series gives you the tools to create your ultimate car audio setup.
CVPM – The Right Price, The Right Power, The Right Products
Affordable, powerful, and packed with Cerwin-Vega’s legendary sound quality, the CVPM series delivers the audio performance you’ve been waiting for. Don’t settle—get loud with Cerwin-Vega Mobile!
Specifications:
Power Rating (RMS)
RMS POWER PER CHANNEL 4Ω 60W X 4
RMS POWER PER CHANNEL 2Ω 90W X 4
RMS POWER PER 2 CHANNELS BRIDGED 4Ω 240W X 2
WATER RESISTANCE - YES
FREQUENCY RESPONSE (HZ): 15HZ-250HZ
Power Supply
- Power Supply: Full WPM
- Power Supply Threshold: 10.0V-17.0V (DC)
- Idle Current: (0.7A)
Distortion
- THD 4 (1KHZ @4Ω): 0.01%
- S/N RATIO (A WEIGHTED @1W): -85dBA
- S/N RATIO (A WEIGHTED @FP): -101.1dBA
Input Sensitivity
- Hi/Low Level Input: 0.15mV-6.0V
Input Impedance
- Low Level Input: 20KΩ
Output Stage
- Output Impedance: 0.011Ω
- Damping Factor (50Hz@4Ω): >70
- Bandwidth (-3db): 10Hz-50KHz
Crossover (1-12dB/Oct)
- Variable High-Pass: 15Hz-250Hz
- Variable low-Pass:
Fuse Rating
- 1x20A
Dimensions
- Length x Width x Height: 7.64”x3.7”x1.47” (194mm x 95mm x 37.3mm)
General Features:

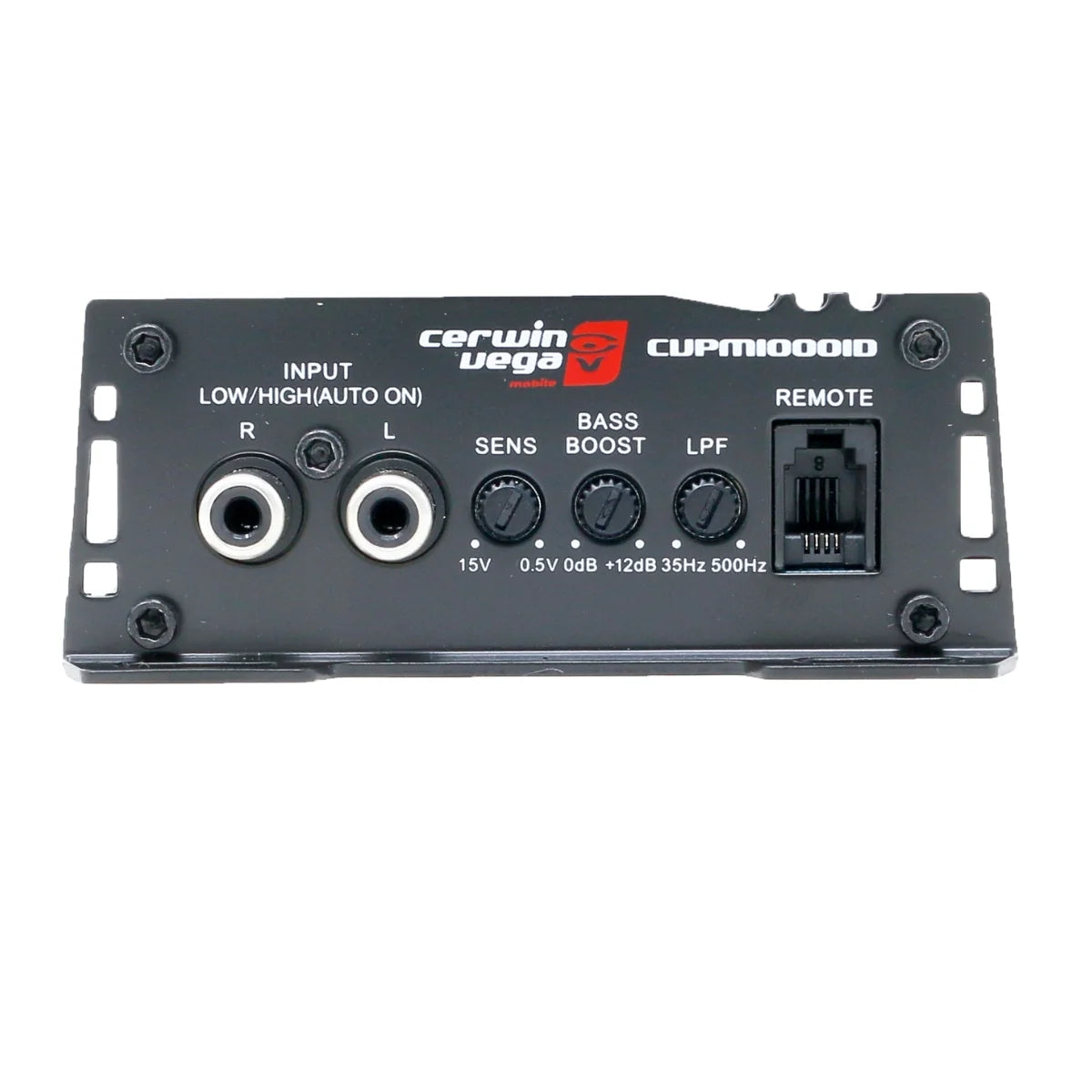

- Vega Bass Boost: This control adds 0 to +12dB of boost at 45Hz. Be cautious when adding boost to some subwoofer systems as they may not be able to handle the additional low frequency boost.

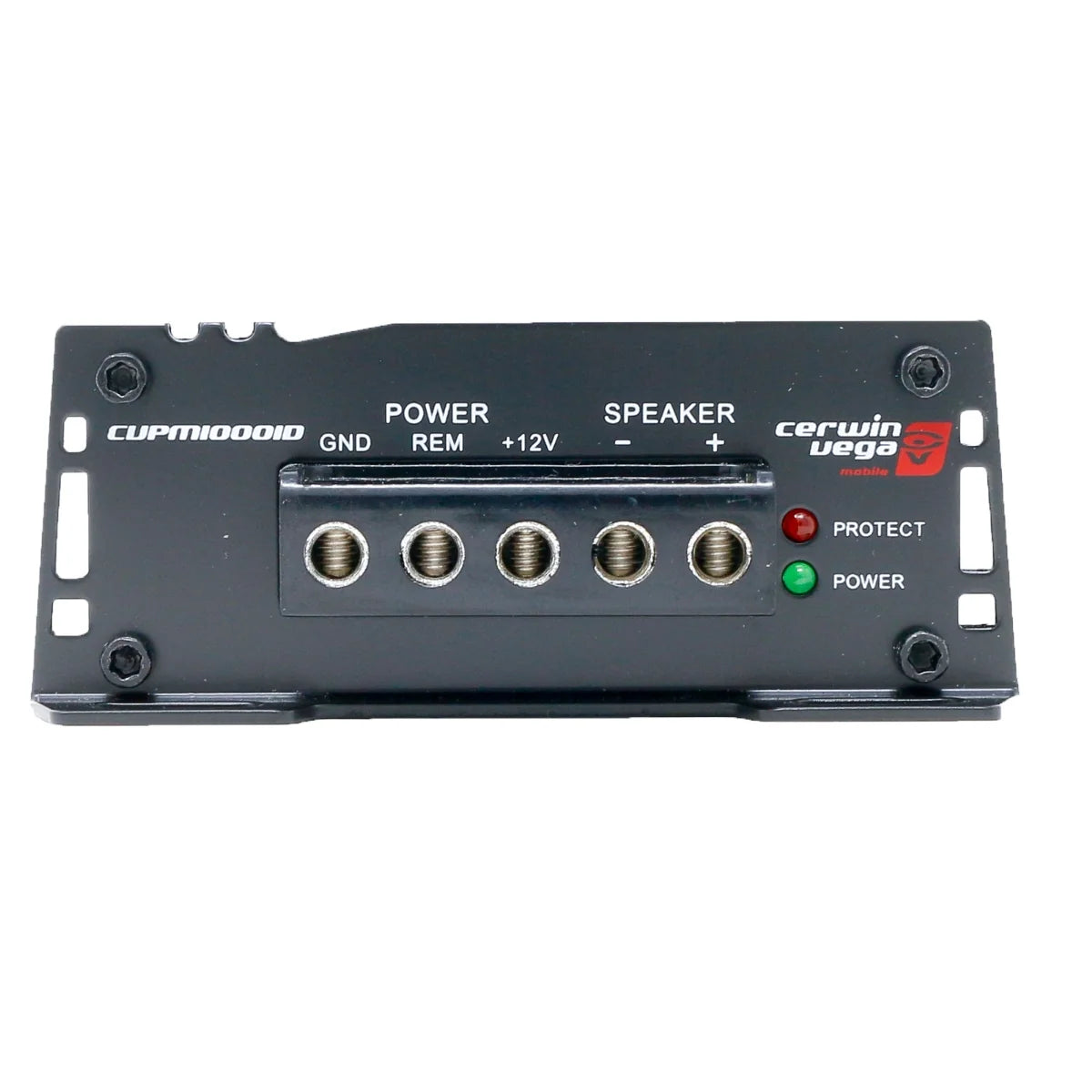

- Power Input Connections: These connections are for input power, chassis ground, and remote turn-on. Use a minimum of 8 gauge wiring for power and ground connections, 18 gauge for remote turn-on. (4 Gauge is recommended for the mono blocks.) The terminals will handle up to 8 gauge wiring with no problem whatsoever. Be sure any wiring that passes through metal has a grommet!
- 1-year Manufacturer's Warranty
