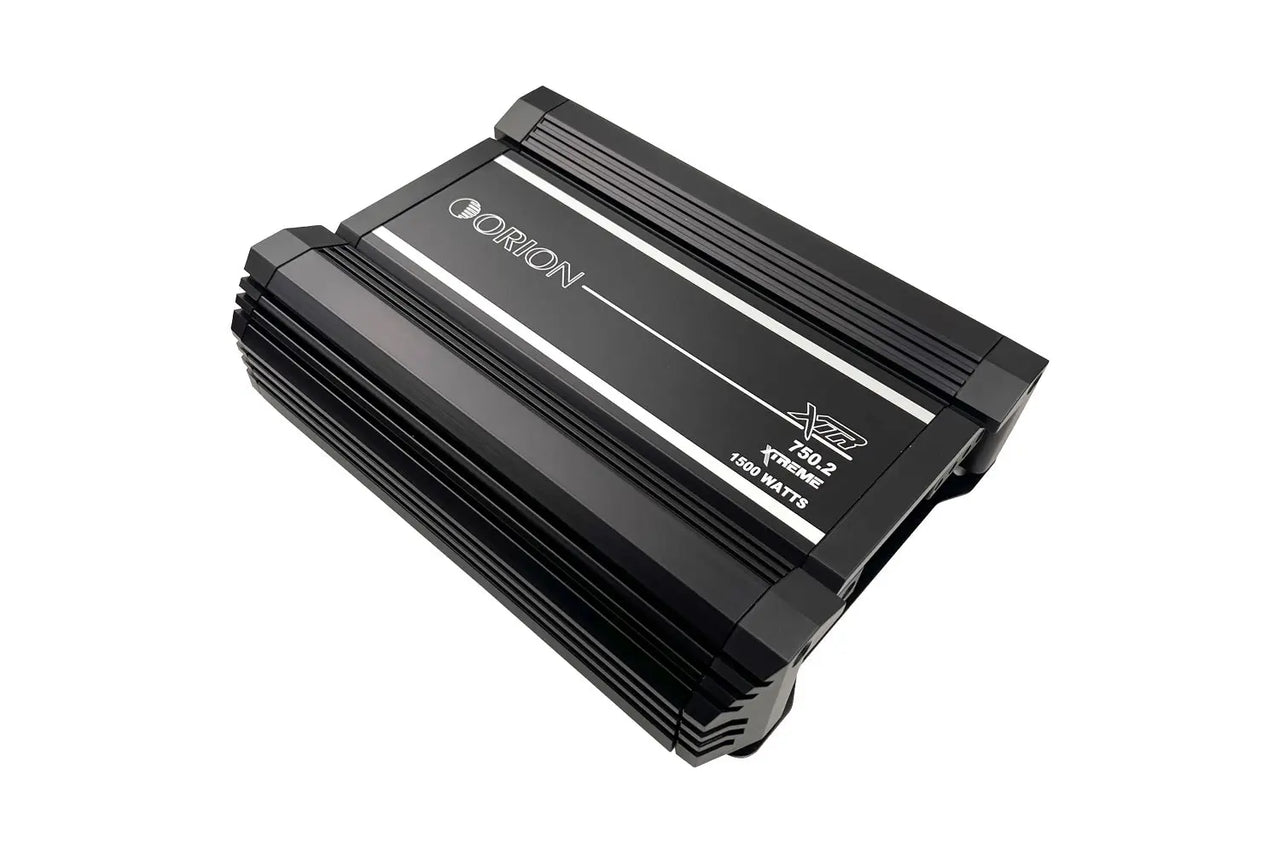

ORION XTR750.2 - 750 Watt RMS 2 Channel Class A/B Amplifier
Guaranteed Fitment
Always the correct partIn-House Experts
We know our productsORION XTR750.2 XTR Series 750W RMS 2-Channel Class-AB Amplifier
Unleash Auditory Excellence: The ORION XTR750.2 XTR Series 750W RMS 2-Channel Class-AB Amplifier empowers your audio experience. With advanced features and precision engineering, this amplifier transcends conventional boundaries, delivering a fusion of power, accuracy, and control to your car audio system.
Immersive Sound Reproduction: Rediscover your music in its truest form. Every note, beat, and melody – from the softest to the most dynamic – is faithfully reproduced for an immersive and authentic listening experience.
Power and Precision Combined: Experience your music with remarkable power and precision. The ORION XTR750.2 XTR Series Amplifier seamlessly blends commanding power with exceptional audio quality, creating an unforgettable auditory journey.
Elevate Your Drive: Step into a world of sonic magnificence with the ORION XTR750.2 XTR Series 750W RMS 2-Channel Class-AB Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical satisfaction. It's time to embrace sound in its purest form.
Key Features:
- Class AB Amplification: Experience the harmonious blend of efficiency and precision with Class AB amplification for powerful and accurate sound reproduction.
- 750 Watts RMS: Immerse yourself in a world of audio excellence with 750 Watts RMS, delivering dynamic and clear sound performance.

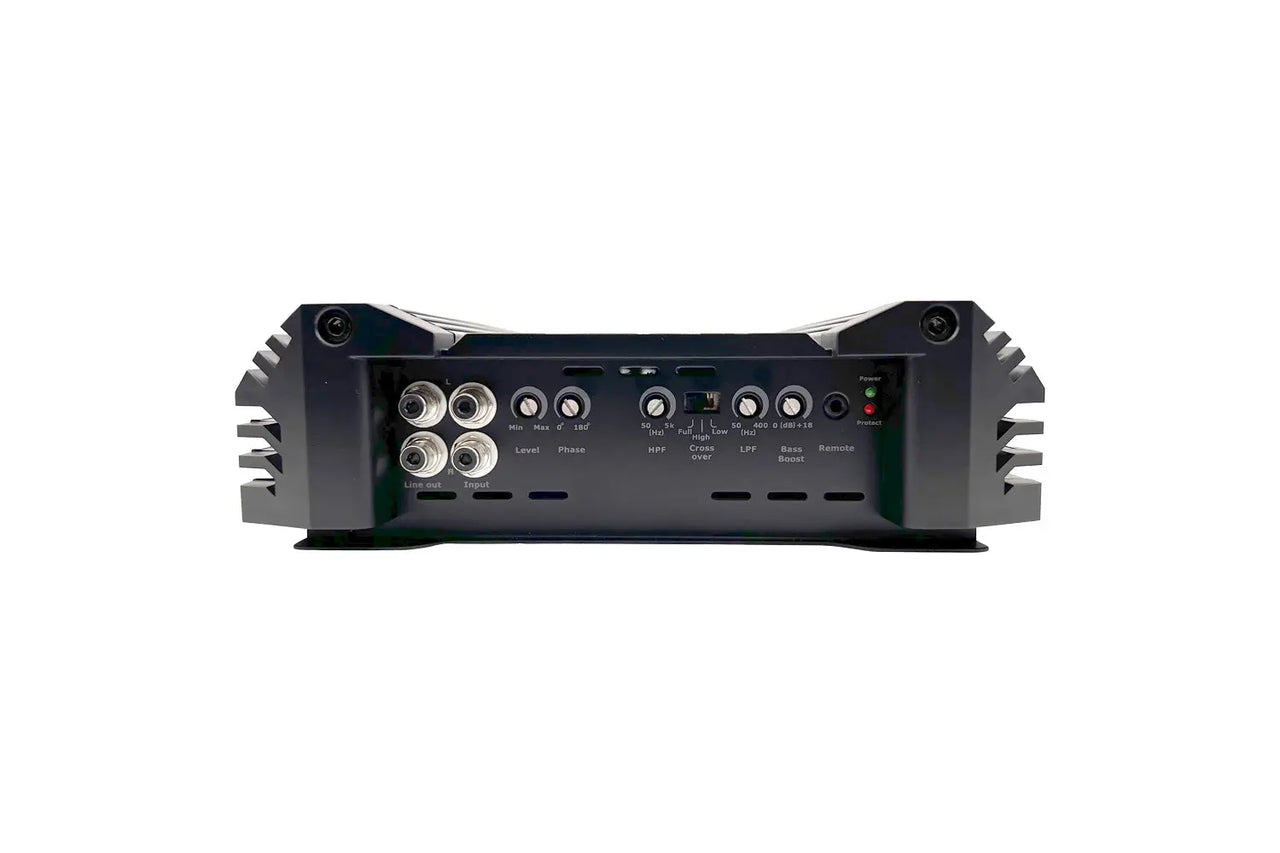

- Precision Audio Control: The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.

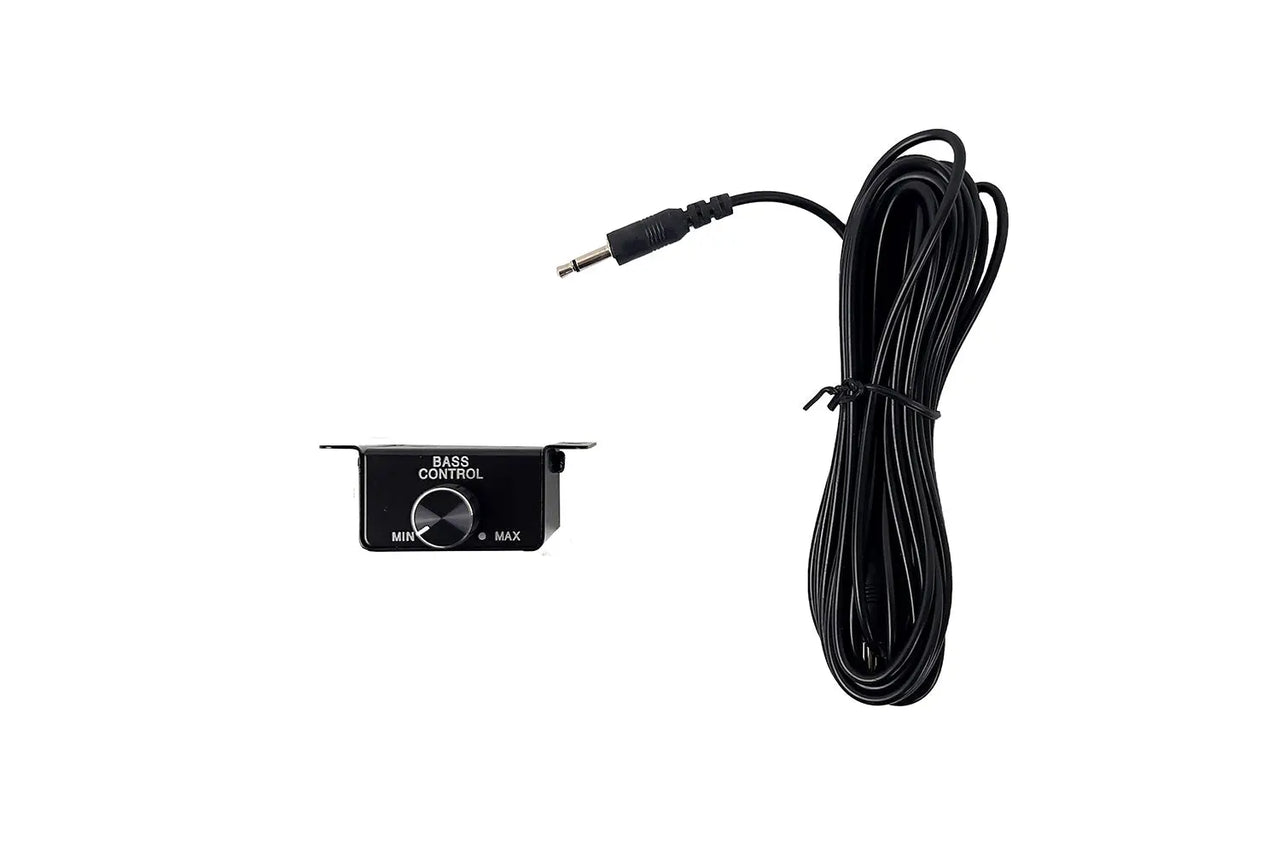

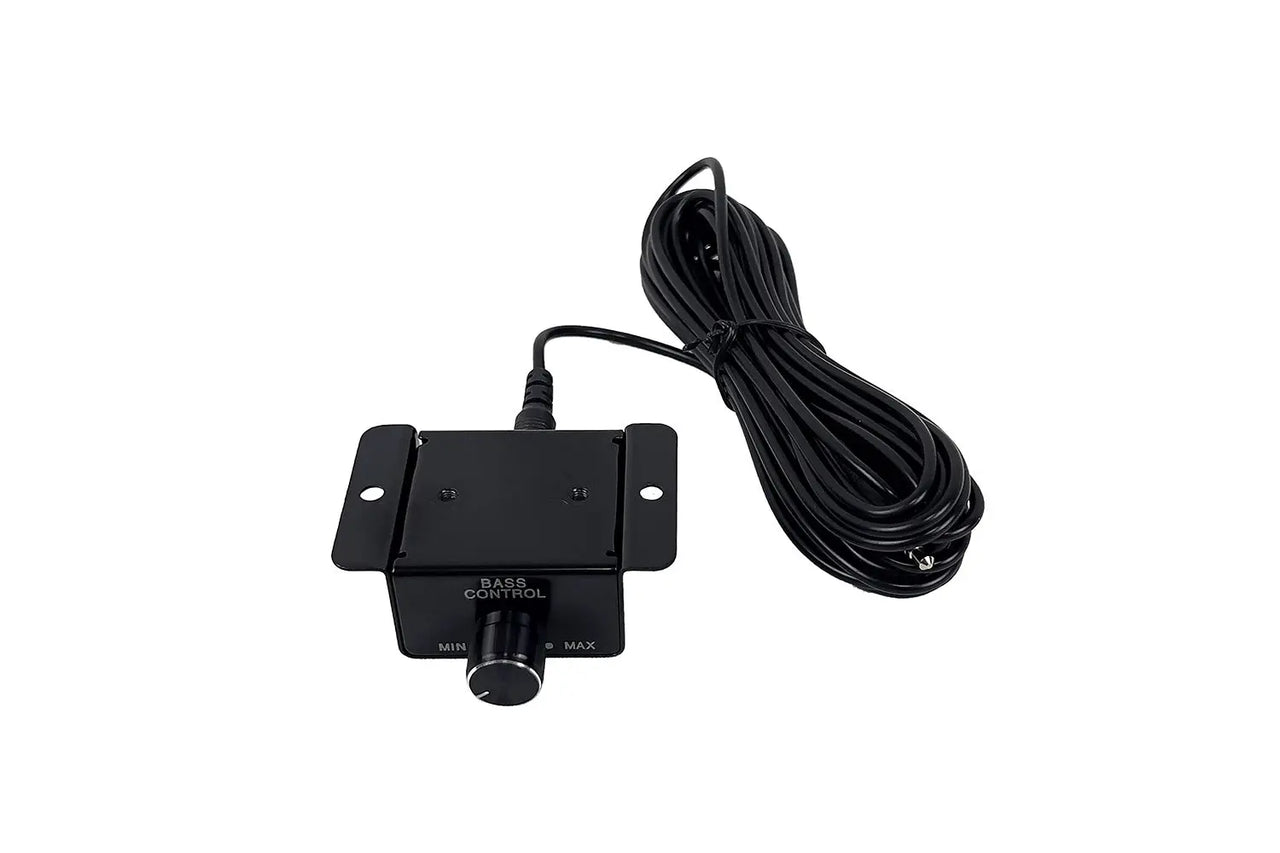

- Customized Bass Enhancement: Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
- Advanced Protection Measures: Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
- Compact and Efficient Design: The amplifier's compact design offers versatile installation options without sacrificing performance.
- Engineered Excellence: Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
- -All MOSFET Power Supply & Output Stage
- -Heavy Gauge / High Current Custom Power and Speaker Terminals
- -2-Ohm Stable
- -RCA Out Throughput
- -12dB Octave Low-Pass Filter
- -Electronic Crossover Network
- -Bass Boost Circuit
- -Intelligent Power and
- -Protection LED Indicator
- -Soft Turn-on/Turn-off
- -Turn-On Delay
- -Fault and Protection Monitoring
- -4-Way Protection- Thermal, DC offset, Short Protection, under & over voltage
Power Ratings:
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 225W
- - RMS WATTS @ 2 Ohms @ 0.5% THD+N: 2 x 375W
- - RMS WATTS @ 4 Ohms @ 0.5% THD+N: 1 x 750W

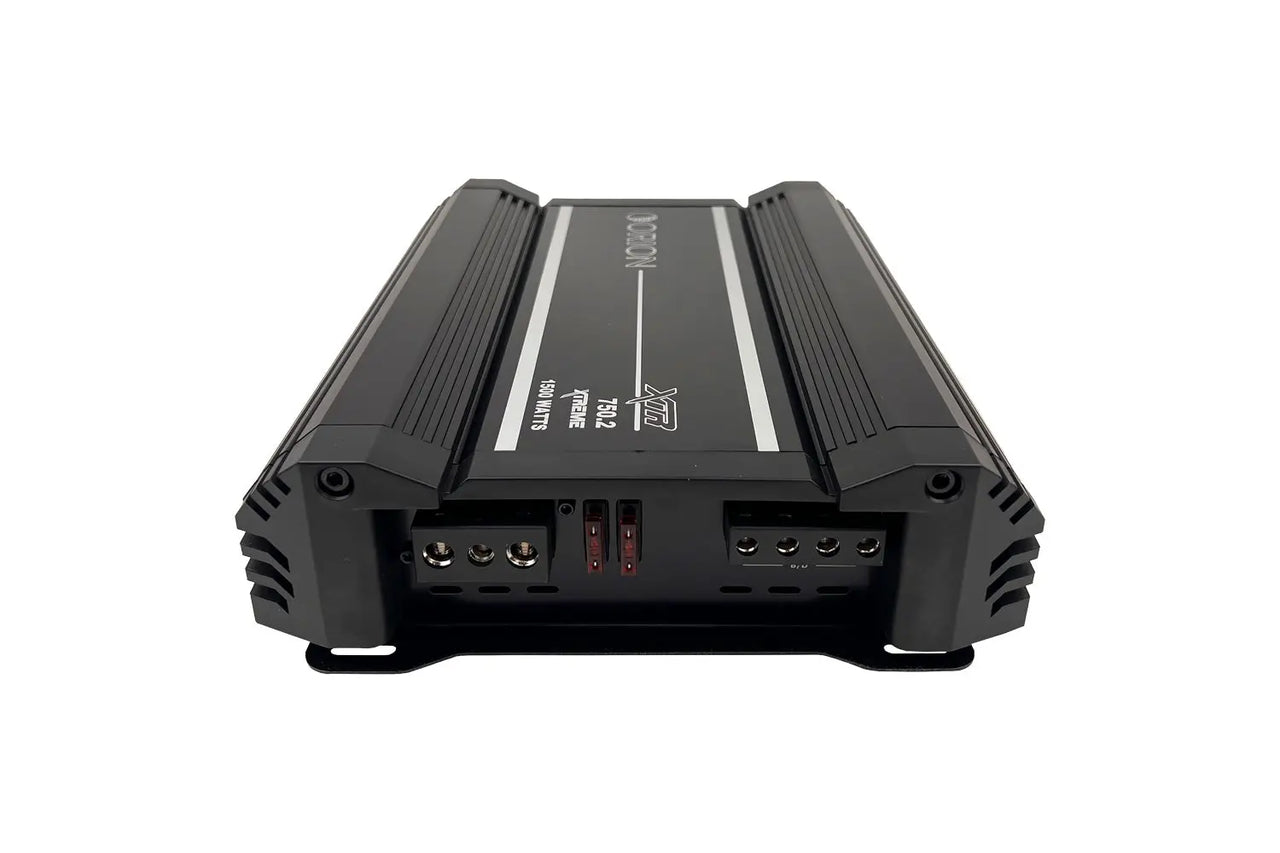

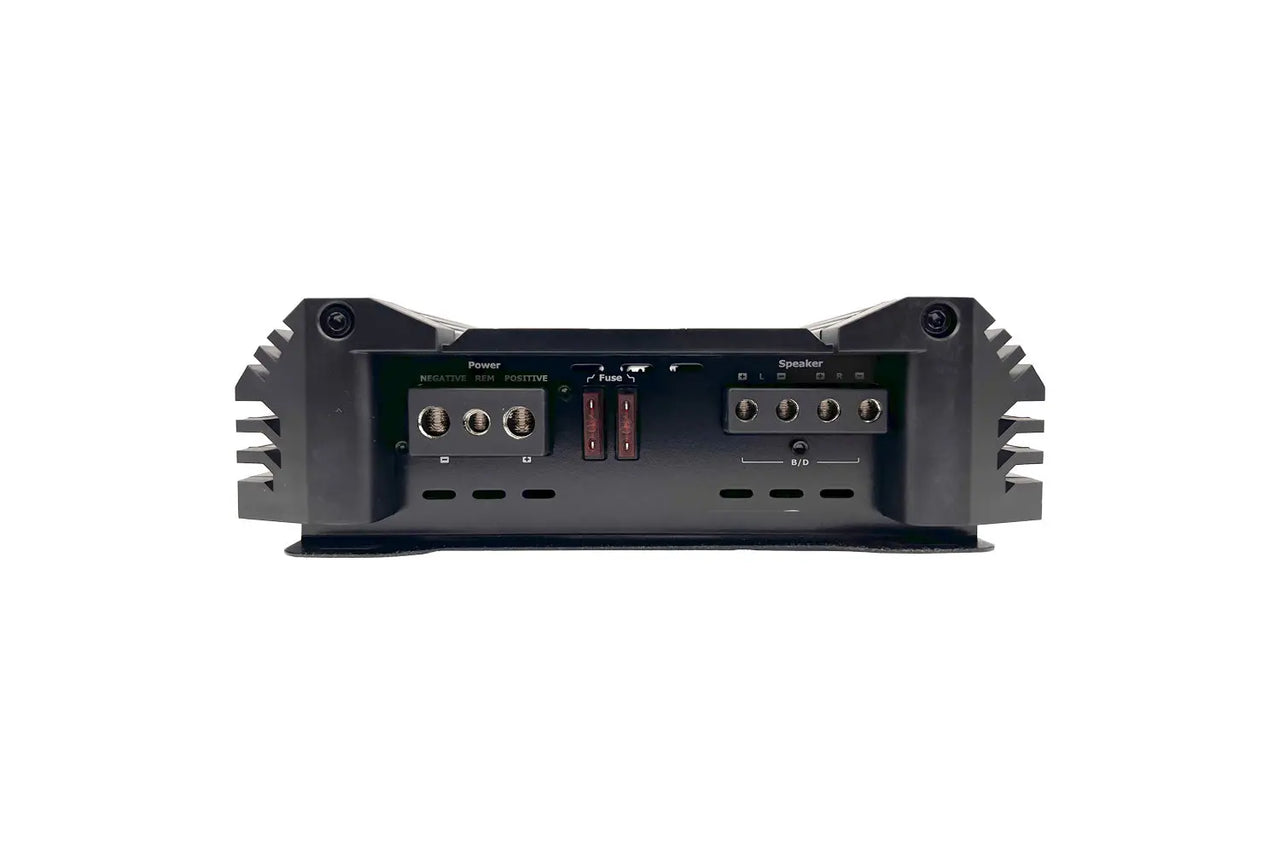

- POWER TERMINAL MANAGEMENT
- Positive Terminals: 1 x 4 AWG.
- Negative Terminals: 1 x 4 AWG.
- Remote Turn-ON Signal: 10 AWG.
- Speaker Output Terminals: 12 AWG.
Specifications:
- Frequency Response: 10Hz - 35kHz
- Linear Bandwidth 20Hz to 65kHz +/- 3 dB
- High Pass Crossover Continuously variable (50-1.5kHz/500-15kHz)
- Low Pass Crossover Continuously variable (50-400Hz)
- Supply Voltage: 9 - 16V
- Amplifier Efficiency: >80%
- Damping Factor: 100dB
- Signal to Noise Ratio: >95dB
- T.H.D. & Noise: 0.5%
- Phase Shift: 0 - 180
- Bass Boost: 0-18dB Variable
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: 80A recommended (2 x 40A ATC Fuses)
- Dimensions (L x W x H): 11.5" x 9.25" x 2.75" (292x235x70mm)
